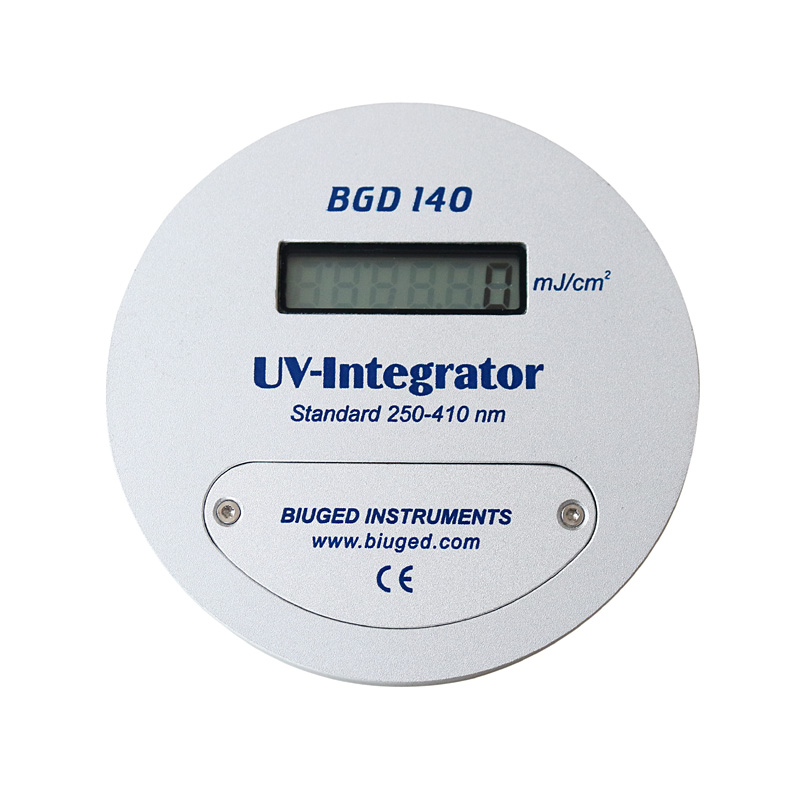

The UV-Integrator is a high quality UV measuring instrument. It is used to measure UV energy of different light-sources, especially on printing machines and UV solidify machine. It is ideal to ensure quality control of printing and drying processes.
It is measuring an integral in the spectral range from 250nm～410 nm or 340nm～420nm , with a pack at the area of 365 nm or 395nm.
By addition of the incidence of the light quantities during the exposure cycle, relative values are calculated.
Because of uneven radiation distribution of the UV light source and different type of construction of the measuring devices by different manufacturers, different readings may appear under the same measurement conditions.
Main Technical Parameters
| Ordering Information → Parameter ↓ | BGD 140 UV Integrator | BGD 142 UV LED Integrator |
| Suitable Light Source | High-Pressure Mercury Lamp & Halogen Lamp | UV LED Lamp |
| Spectral Response Range | 250nm～410nm， λp = 365nm | 340nm～420nm， λp = 395nm |
| Measurement Power Range | 0 ～5,000 mW/cm2 | 0 ～40,000 mW/cm2 |
| Measurement Energy Range | 0 ~ 999, 999mJ/cm² | |
| Power Resolution | 0.1 mW/cm2 | 1 mW/cm2 |
| Power Curve | No | Yes |
| Temperature Range | No | -55℃～125℃ |
| Power Supply | 3V Lithium Battery （Replaceable） | 2 AAA Alkaline Batteries |
| Overall Size | φ95mm；Thickness is12mm | φ120mm；Thickness is13mm |
| Net Weight | 160 g | 245g |
| Work Environment | While on the conveyer belt, it can withstand max.110℃ for up to 10 seconds | |
| Suggested Calibration Period | One year | |
