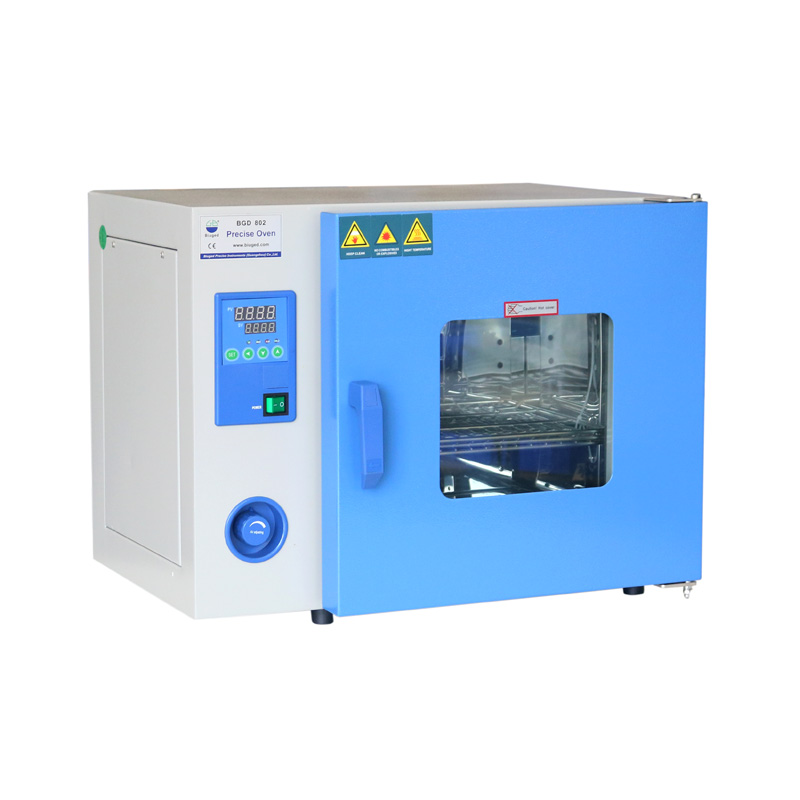

BGD Series Precise Ovens with forced convection focused on addressing the requirements involved in drying or heating samples. With high quality and reliability, high cost performance, outstanding controlling temperature accuracy, Biuged brand ovens has become the first option for many laboratories.
◆ Microprocessor PID temperature controller with temperature control protection, digits display and timing function ensures a precise and reliable temperature control.（intelligent programmable LCD temperature controller is an option）
◆ Hot-air circulating system consists of a fan keeping running under a high temperature and proper air ducts to ensure a uniform distribution a high temperature in chamber
◆ Independent alarm system for temperature-limiting ensures experiments run safely and no accident would happen.（Option）
◆ Recorder and printer are options which can print or record set parameters and trace variation curves of temperature.（Option）
◆ Can equip explosion-proof or vacuum （Option）
■ Temperature Stability： ±1℃
■ Temperature Control： 0.1℃
■ Timing Range： 1～9999min
■ Working Room Material：High quality stainless steel by argon-arc-welding technology
■ Ordering Information
| Technical Item→ Ordering Information | Electrical Supply | Temperature Range | Power | Cubage | Interior Dimension （mm）W×D×H | Overall Dimension （mm）W×D×H | Shelves |
| BGD 802 | 220V 50HZ | RT+10-250℃ | 850W | 30L | 340×320×320 | 620×440×490 | 2 pcs |
| BGD 804 | 220V 50HZ | RT+10-300℃ | 850W | 30L | 340×320×320 | 620×440×490 | 2 pcs |
| BGD 806 | 220V 50HZ | RT+10-300℃ | 1100W | 50L | 420×395×350 | 720×530×520 | 2 pcs |
| BGD 808 | 220V 50HZ | RT+10-250℃ | 1550W | 80L | 450×400×450 | 740×530×630 | 2 pcs |
| BGD 810 | 220V 50HZ | RT+10-300℃ | 1550W | 80L | 450×400×450 | 740×530×630 | 2 pcs |
| BGD 812 | 220V 50HZ | RT+10-250℃ | 2050W | 136L | 550×450×550 | 840×580×730 | 2 pcs |
| BGD 814 | 220V 50HZ | RT+10-300℃ | 2050W | 136L | 550×450×550 | 840×580×730 | 2 pcs |
| BGD 816 | 220V 50HZ | RT+10-250℃ | 2450W | 220L | 600×500×750 | 880×630×930 | 2 pcs |
| BGD 818 | 220V 50HZ | RT+10-300℃ | 2450W | 220L | 600×500×750 | 880×630×930 | 2 pcs |
| BGD 820 | 380V 50HZ | RT+10-250℃ | 3100W | 420L | 640×585×1355 | 780×730×1780 | 3 pcs |
| BGD 822 | 380V 50HZ | RT+10-300℃ | 3100W | 420L | 640×585×1355 | 780×730×1780 | 3 pcs |
| BGD 824 | 380V 50HZ | RT+10-250℃ | 4000W | 620L | 840×600×1355 | 980×800×1880 | 4 pcs |
| BGD 826 | 380V 50HZ | RT+10-300℃ | 4000W | 620L | 840×600×1355 | 980×800×1880 | 4 pcs |
| BGD 827/1 | 380V 50HZ | RT+20-400℃ | 3250W | 50L | 350×350×400 | 890×700×920 | 2 pcs |
| BGD 827/2 | 380V 50HZ | RT+20-500℃ | 4050W | 50L | 350×350×400 | 890×700×920 | 2 pcs |
| BGD 828/1 | 380V 50HZ | RT+20-400℃ | 4050W | 100L | 450×450×450 | 990×790×990 | 2 pcs |
| BGD 828/2 | 380V 50HZ | RT+20-500℃ | 4900W | 100L | 450×450×450 | 990×790×990 | 2 pcs |
| BGD 829/1 | 380V 50HZ | RT+20-400℃ | 4900W | 220L | 600×600×600 | 1140×950×1140 | 2 pcs |
| BGD 829/2 | 380V 50HZ | RT+20-500℃ | 6050W | 220L | 600×600×600 | 1140×950×1140 | 2 pcs |
Biuged also offers all size ovens with vacuum or explosion-proof function
