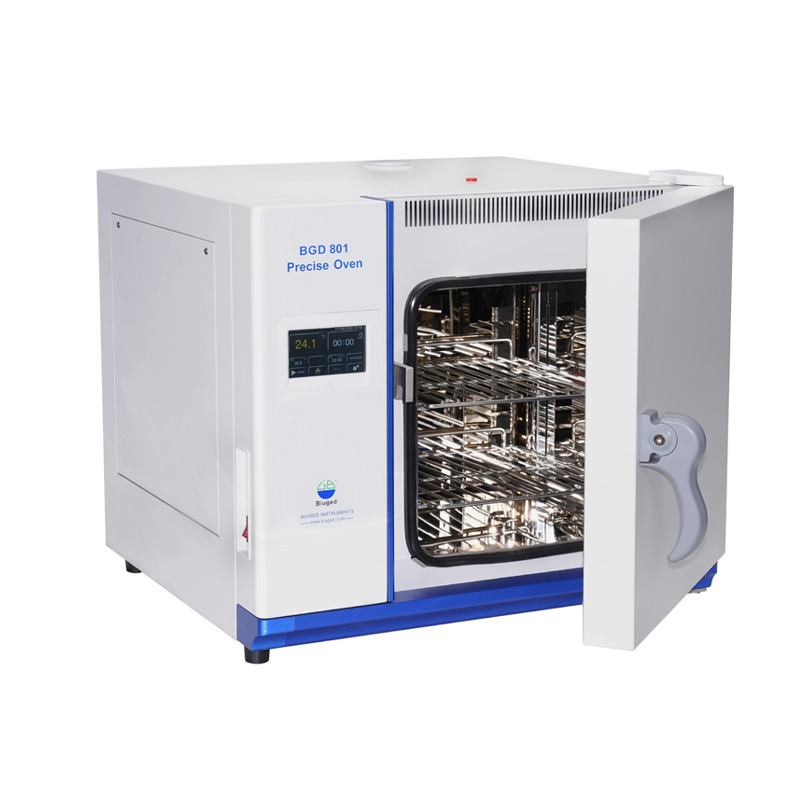

Precise Oven 801 Series

Ovens of this series adopt high-precision PID temperature controllers to precisely regulate the heating power of electric heating tubes, maintaining an accurate, uniform (temperature variation ≤2℃) and stable high-temperature environment across the entire working chamber. This enables even and rapid moisture evaporation from test specimens to achieve efficient material drying. In addition, featuring outstanding advantages including superior temperature control accuracy, minimal temperature overshoot and slight temperature fluctuation, the equipment is widely applicable to high-precision testing and relevant application scenarios.

            Features：

            ◆ 3D Circulation Air Duct System: Adopting an innovative diversion-type air duct paired with industrial-grade centrifugal wind wheels to force hot air into three-dimensional circulating airflow, the system eliminates dead air zones at corner areas. Hot air flows evenly across every shelf, guaranteeing a temperature difference of ≤2℃ between any two measuring points (actual test data at 100℃), which is far superior to the ±2.5% full-scale temperature tolerance specified in Chinese National Standard GB/T 30435.

            ◆ Superior thermal insulation technology with thickened high-quality ceramic fiber insulation featuring ultra-low thermal conductivity, combined with a sealed cabinet design, enables rapid temperature recovery after door opening to secure uninterrupted processing.

            ◆  4.3-inch Touch Screen: Real-time display of parameters including temperature and time.

            ◆ Programmable Function: Up to 8 programs can be preset, with each program containing a maximum of 8 segments (temperature & time).

            ◆  Inner chamber made of 304 stainless steel with mirror polishing finish.

◆ The shelves feature anti-tilt design to prevent falling off when half pulled out, and their heights are adjustable as required.

            ◆  A temperature test port is located on the upper part of the chamber.

            ◆ Reservation & Timing Function

            ◆  Supports temperature unit switching between ℃ and ℉

            ◆  Over-temperature protection: the power supply to heating tubes is automatically cut off once the internal chamber temperature exceeds the rated maximum limit of the equipment.

            ◆  Comes with standard USB port; RS485 interface is available as an option.

            ◆  An independent over-limit temperature alarm system is available as an optional accessory, which triggers audible and visual alerts once temperature exceeds the set value.
