Compared to traditional ultraviolet (UV) solidify machines that use mercury or gallium lamps as light sources, those solidify machines that uses LED as light sources has several distinct advantages, including longer lifetime, environmental friendliness (no ozone production), energy efficiency, and no significant heat emission during operation.
Currently, LED light sources at wavelengths of 365nm and 395nm are primarily used. Within these wavelengths, the light emission intensity of LED is much greater than that of mercury lamps, which is beneficial for the deep curing of UV materials. At the same time, the heat generated by LED lighting is dissipated from the back, with no heat on the lighting side itself, thus avoiding any temperature effects on the curing materials.
On the other hand, LED emit narrow bandwidth light, which allows for precise curing (including the precise curing of specific parts of materials, such as in 3D printing; or adjusting the irradiation distance to achieve a certain degree of curing of the material).

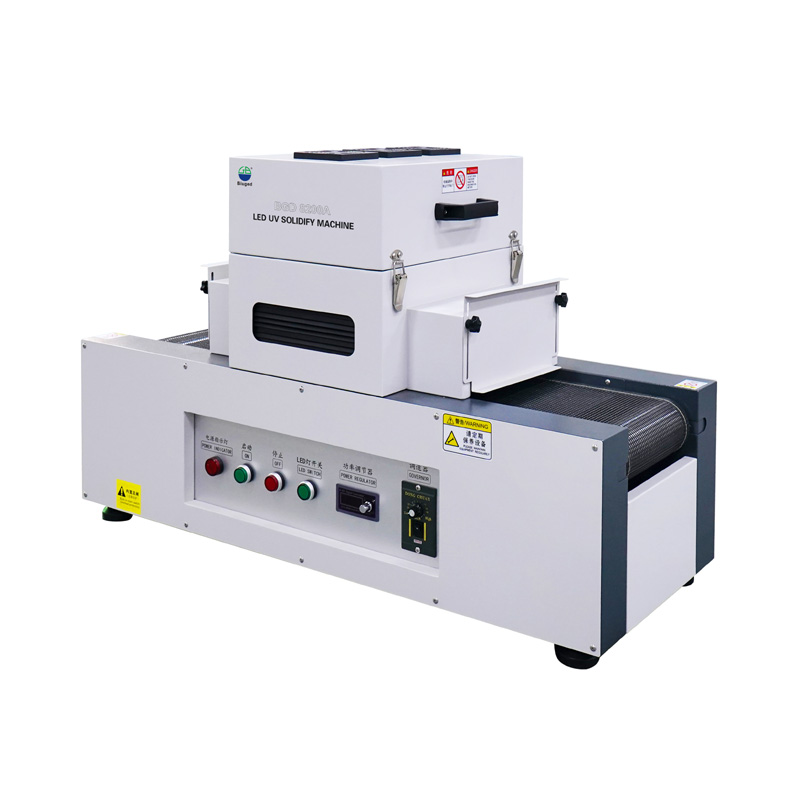

| Technical Items → Ordering Information ↓ | BGD 8200/A LED UV Solidify Machine | BGD 8200/B LED UV Solidify Machine | BGD 8400/A LED UV Solidify Machine | BGD 8400/B LED UV Solidify Machine |
| Wavelength | 365nm | 395nm | 365nm | 395nm |
| Lighting Size | 100mm×200mm | 100mm×400mm | ||
| Belt Width | 200mm（Teflon） | 400mm（Teflon） | ||
| Moving Speed | 0.5m/min～8m/min（adjustable） | |||
| Irradiance Energy★ （mW/cm2） | 800 （UVA） 230 （UVV） | 60 （UVA） 1200（UVV） | 800 （UVA） 230 （UVV） | 60 （UVA） 1200（UVV） |
| Adjustable Power | 10%～100%（knob-style） | |||
| Lighting Distance | 10mm～100mm（adjustable） | |||
| LED Lifetime | 20000h | |||
| Heat Dissipation | Forced air cooling | |||
| Power Supply | AC 220V，50&60Hz | |||
| Total Power | 500W | 1000W | ||
| Overall Size（L×W×H） | 1000mm×410mm×660mm | 1000mm×610mm×790mm | ||
| Remarks | ★. These data is measured by UV Power PUCK II produced by USA EIT company under 20mm lighting distance. . Wave peak range：UVA→320~390nm ； UVV→395~445nm | |||
