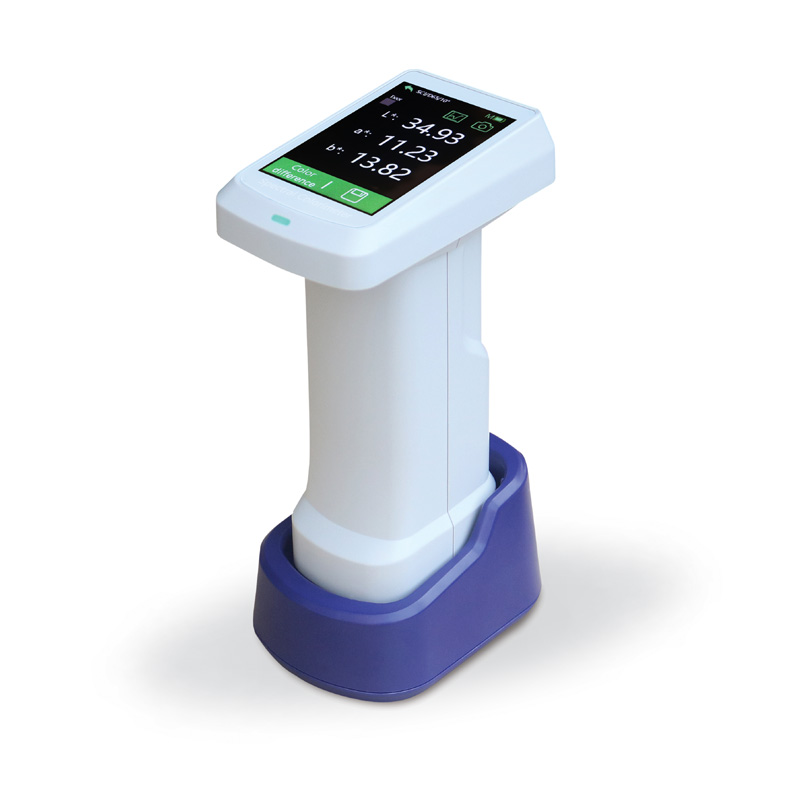

The BGD 552 Series Spectral Colorimeter is the latest generation of high-precision colorimeter developed by Biuged. It adopts a dual-optical-path design, which monitors light source energy fluctuations while measuring sample signals, reducing interference and achieving higher measurement stability. The repeatability index is improved to ΔE*ab ≤ 0.03, ensuring high standards in measurement speed, accuracy, stability, and inter-instrument consistency.
Additionally, this instrument utilizes an innovative nano-integrated optical component with a thickness of only 5 micrometers as the spectroscopic device, achieving nanometer-level spectral resolution, significantly enhancing color measurement precision.
Features:
◆ Ultra-High Repeatability (ΔE*ab ≤ 0.03) & Outstanding Inter-Instrument Consistency (ΔE*ab ≤ 0.3) – Certified Grade 1 Metrology
Repeatability is a critical performance indicator for color difference meters. The BGD 552 employs an advanced optoelectronic testing system and undergoes rigorous calibration to achieve unmatched repeatability. Furthermore, it uses BCRA standard ceramic tiles for color calibration and traceability, combined with superior craftsmanship, ensuring exceptional inter-instrument consistency.
◆ Powerful & Convenient Calibration Function
The BGD 552 requires no frequent manual calibration. Simply place it on the calibration base, and the instrument will automatically adjust based on environmental conditions, ensuring optimal performance at all times.
The calibration base features a zirconia (ZrO₂) white tile (Mohs hardness 9, comparable to diamond), which is highly resistant to scratches and unaffected by temperature/humidity changes. Compared to competitors using standard ceramic or plastic tiles, this ensures superior long-term stability and durability.
◆ Multiple Measurement Parameters – Meeting Diverse Industry Standards
40+ light sources (A, B, C, D50, D55, D65, etc.)
30+ measurement indices, including：Spectral reflectance，CIE-Lab, CIE-LCh，ΔE*ab，Hiding power，whiteness，yellowness，etc.
◆ Versatile Measurement Adaptability
The BGD 552/2 supports 6 measurement apertures for different sample sizes:
Stable Type：Φ11mm + Φ6mm + Φ3mm
Dexterous Type：▽11mm + ▽6mm + ▽3mm
◆ Built-in HD Camera for Precise Positioning (BGD 552/2 Only)
The BGD 552/2 features a high-definition camera to visually confirm the measurement area, preventing errors caused by misalignment.
| Technical Parameters | Ordering Information | |
| BGD 552/1 Basic Spectral Colorimeter | BGD 552/2 Premium Spectral Colorimeter | |
| Standards | CIE No.15、ISO7724-1、ASTM E1164、DIN 5033-7 etc. | |
| Illuminating/Viewing Geometry | d/8° | |
| Integrating Sphere Dia. | 40mm | |
| Measurement Targets | Spectral Reflectance，CIE-Lab，CIE-LCh，HunterLab，CIE-Luv，XYZ，Yxy，RGB,Color Difference(ΔE*ab，ΔE*cmc，ΔE*94，ΔE*00)，Whiteness Index/WI（ASTM E313-00，ASTM E313-73，CIE/ISO，AATCC，Hunter，Taube Berger Stensby），Yellowness Index/YI（ASTM D1925，ASTM E313-00，ASTM E313-73），Blackness/My&dM，Staining Fastness，Color Change Fastness，Tint（ASTM E313-00），Color Density CMYK（A,T,E,M），Metamerism Index（Milm），Munsell Color System，Hiding Power，Color Strength（Coloring Power) | |
| Illumination | A，B，C，D50，D55，D65，D75，F1，F2，F3，F4，F5，F6，F7，F8， F9，F10，F11，F12，CWF，U30，U35，DLF，NBF，TL83，TL84， ID50，ID65，LED-B1，LED-B2，LED-B3，LED-B4， LED-B5，LED-BH1，LED-RGB1，LED-V1，LED-V2 | |
| Light Source | LED+UV | |
| Observer | 2°、10° | |
| Disaply Screen | 3.5“ colorful touch screen | |
| Spectroscopic Method/Sensor | Nano-integrated spectroscopic device / Silicon photodiode array, dual 16-channel | |
| Wavelength Range/Interval | 400nm～700nm (user can view reflectance at 31 wavelengths) / 10nm | |
| Measuring Aperture | Φ 11mm | Three types：Φ 11mm、Φ 6mm、Φ 3mm （Available in both rounded-stable type and pointed-dexterous type for user selection） |
| Measurement Mode | SCI | SCI & SCE |
| Positioning with Camera | × | √ |
| Light Source Lifetime | 10 years or one million times | |
| Reflectance Range/Resolution | 0～200% / 0.01% | |
| Software | Andriod、iOS、Windows、App | |
| Measurement Mode/ Measurement Time | Single measurement，Average Measurement（2~99 times）/ Approx. 1 second | |
| Display Resolution | 0.01 | |
| Data Storage Capacity | Onboard Memory: 10,000 measurement records； APP Support: Cloud-based unlimited storage | |
| Net Weight/Package Weight | 0.6 KG / 2.2 KG | |
| Power Supply | Rechargeable lithium-ion battery，3.7V/3000mAh，Single charge enables up to 8,000 consecutive measurements. | |
| Language | Chinese, English | |
| Data Interface | USB、Bluetooth | |
| Optional Accessories | BGD 1390—Special test box for powder BGD 1391/A—Universal Test Components BGD 1393/A—Mini Printer | |
