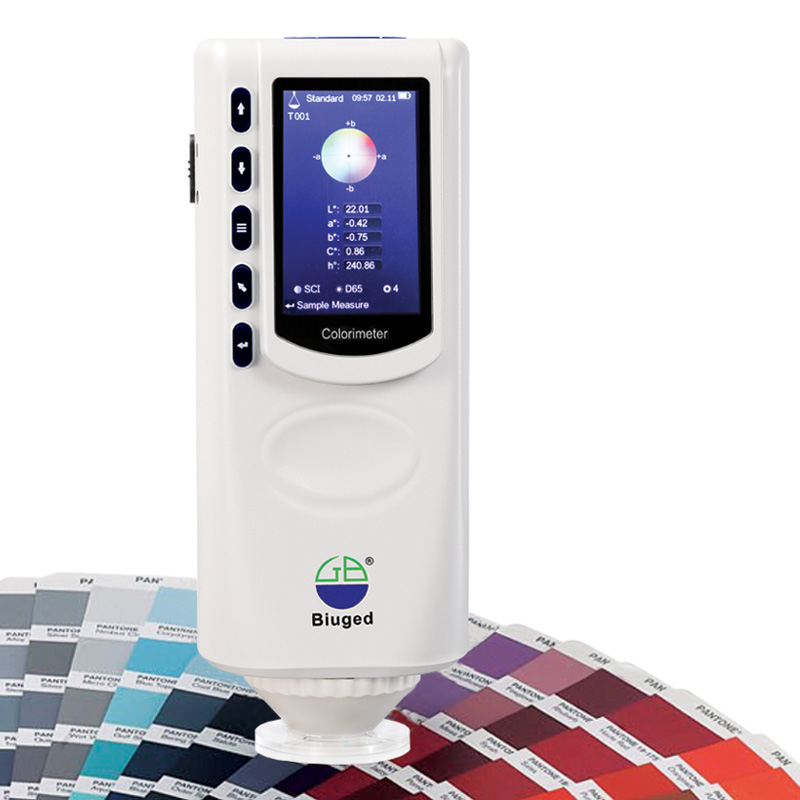

BGD 551 Economic Portable Colorimeters offer a simple and fast measurement for color difference between two samples. It’s a higest cost performance colorimeter and very suitable for QC inspection of production and construction site.
◆ Double Locating： Illuminating locating and cross locating
◆ Double Measurement End Face： Large area measurement and small area measurement
◆ New Integrating Sphere Design： More stable measurement
◆ Equipped with Rechargeable High-Capacity Li-ion Battery
Feature and Advantages
◆ Built-in white plate parameters. No need to calibrate each time which realize rapid measurement.
◆ Double Locating: Illuminating locating and precise cross locating.
◆ Switchable Double Measurement End Face: Large stable end face and small concave-convex end face.
◆ New Integrating Sphere Optical Path Design: Eliminating the stray light of main optical path and auxiliary optical path. Possessing the
highest measurement stability and precision.
◆ 4mm Measuring Aperture.
◆ Equipped with rechargeable high-capacity Li-ion battery. No need to purchase battery repeatedly.
◆ Configure CQCS3 software. Connect PC computer to realize more functions.
◆ Having got SCM Metrological Certification, CE Certification, and ISO9001 Quality Management System Certification.
◆ Hand-head structure: small and convenient; make the measurement easier.
◆ Spending huge sums on high-end mold. Product consistency approaches 100%.
◆ High cost performance: large output, good quality, cheap products.
| Technical Parameters | |
| Illuminating/Viewing Geometry | 8/d |
| Measuring Aperture | Φ4mm |
| Detector | Silicon photoelectric diode |
| Locating | Illuminating Locating/Cross Locating |
| Measurement End Face | Large stable end-face and small concave-convex end-face |
| Color Space | CIEL*a*b*C*h* ；CIEL*a*b*；CIEXYZ |
| Color Difference Formula | △E*a b △L*a*b* △E*C*h* |
| Light Source | D65 |
| Light Source Device | LED blue light excitation |
| Errors Between Each Equipment | ≤0.80ΔE*a b |
| Storage | 100 pcs standards； 20,000 pcs samples |
| Repeatability | Standard deviation within △E* a b 0.08 （Average of 30 measurements of standard white plate） |
| Language | English/Chinese |
| Weight | 500 g |
| Dimension | 205mm×67mm×80mm |
| Power source | Rechargeable lithium-ion battery 3.7V@3200mAh |
| Lamp Life | 3 years, more than 1.6 million measurements |
| Charging Time | 8 hours–100% electricity |
| PC Software | CQCS3 Software |
■ Ordering Information：
BGD 551—Economic Portable Colorimeter
BGD 1390—Special test box for powder
BGD 1393—Mini Printer
BGD 1390—Special test box for powder
BGD 1393—Mini Printer
BGD 551 Economic Portable Colorimeter(Operation)
