Paints or inks often are in different shear rates status from manufacturing to application. As a typical Non-newtonian fluid, paints or inks always show different viscosity characteristics at different shear rates.
Generally speaking, paints are in a low shear rate state when it is stored, transported, levelling and sagging. But they are in the medium shear rate when being pumped, dipped and mixed at a low speed. And at high-speed dispersion, roll, spray and brush coating, they are in a high shear state, and the shear rate is generally 9000S-1 to 12000S-1.Therefore, understanding the rheological characteristics of paints or inks at such high shear rates requires the use of cone-plate viscometer to measure.

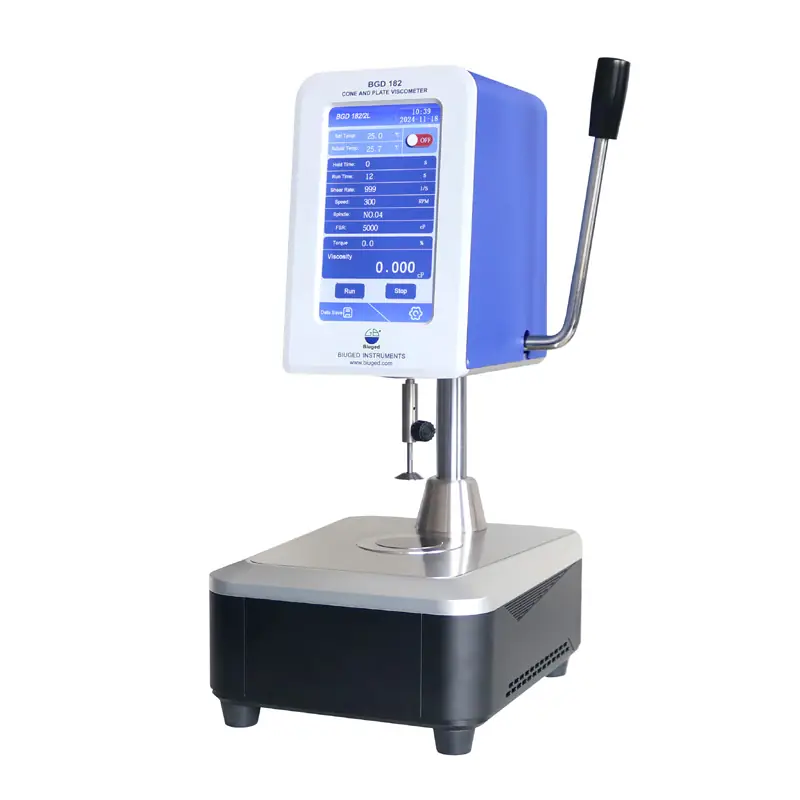

BGD 182 Cone-and-plate Viscometer uses a special angle conical spindle, which generates a very high shear rate on the measured sample under the high-speed drive of a stepper motor. It conforms to ISO 2884-1《Paints and varnishes — Determination of viscosity using rotary viscometers — Part 1: Cone-and-plate viscometer operated at a high rate of shear》.
◆ 7-inch touch screen, menu operation, rich display content (measurement values, spindle No., speed, shear rate, etc.), simple and convenient to operate.
◆ Beautiful and durable metal shell, Use a handle to lift up and down, precise and fast positioning, high reliability.
◆ The electrical part of the whole machine has been carefully designed, with high reliability, precision, stability, and ease of use.
◆ ARM chip processor, with faster data processing speed.
◆ High precision linear calibration before leaving the factory, capable of interpolating multiple points to ensure higher measurement accuracy.
◆ Measure the sample viscosity by stepless speed , convenient for operators to choose different shear rates based on the actual application conditions of the sample.
◆ The measured viscosity values vary continuously, and many viscosity units can be freely interchanged.
◆ The instrument automatically alarms when the measurement exceeds the range.
◆ High speed data transmission interface ensures a fast and stable communication connection between the instrument and the computer.
◆ Data storage and exporting data by an external USB function.
◆Built in high-precision PT100 temperature sensor, with high temperature control accuracy and good stability.
◆ With calibration function to temperature, ensures precise and reliable temperature for controlling.
◆ Powerful and simple calibration function: Users only need one bottle of standard oil and can quickly calibrate the instrument through its built-in calibration menu.
◆ Can choose the data collection and programmed analysis software to analyze the rheological features of the sample thoroughly.
Main technical parameters
■ Adjustable Speed Range：5rpm～1,000rpm（continuously viable，@1rpm）
■ Measurement Error：< 2% of full scale
■ Sample Volume：< 2ml （See the table below for details）
■ Two built-in temperature control for option： 5℃-75℃（L type / Low temperature）；
50℃-235℃（H type / High temperature）
■ Temperature Resolution：0.1℃
■ Temperature Control Accuracy：±0.5℃（L type）；±1℃（H type and the set temperature is
less than 150℃）or ±2℃（H type and the set temperature is higher than 150℃）
■ Rotors：10 types for option（corresponding shear rates and measurement ranges are shown in the table below）
■ Power Supply : AC 220V, 50Hz/60Hz, the max. current is about 1.5A
■ Overall Size：275mm×210mm×460mm（L×W×H）
■ Net Weight：12KG
■ Ordering Information：
BGD 182/1L—Cone-and-plate Viscometer（Low temperature and Low Torque）
BGD 182/1H—Cone-and-plate Viscometer（High temperature and Low Torque）
BGD 182/2L—Cone-and-plate Viscometer（Low temperature and High Torque）
BGD 182/2H-–Cone-and-plate Viscometer（High temperature and High Torque）
BGD 182/Z-004—Data Acquisition and Programmable Analysis Software
CAP-01～CAP-10— Spindle for Cone-and-plate Viscometer
| Spindle | CAP-01 | CAP-02 | CAP-03 | CAP-04 | CAP-05 | CAP-06 | CAP-07 | CAP-08 | CAP-09 | CAP-10 |
| Sample Volume | 67µL | 38µL | 24µL | 134µL | 67µL | 30µL | 1700µL | 400µL | 100µL | 170µL |
| Shear Rate Range（S-1） | 66.5～ 13,300 | 66.5～ 13,300 | 66.5～ 13,300 | 16.5～ 3,300 | 16.5～ 3,300 | 16.5～ 3,300 | 10～ 2,000 | 10～ 2,000 | 10～ 2,000 | 25～ 5,000 |
| BGD 182/1 Measurement Range（mPa.s） | 20～ 1,600 | 20～ 3,200 | 20～ 6,600 | 20～ 13,000 | 20～ 26,000 | 20～ 66,000 | 20～ 2,600 | 20～ 10,800 | 20～ 44,000 | 20～ 4,400 |
| BGD 182/2 Measurement Range（mPa.s） | 20～ 37,500 | 40～ 75,000 | 80～ 150,000 | 100～ 300,000 | 300～ 600,000 | 800～ 1,500,000 | 78～ 62,500 | 313～ 250,000 | 125～ 1,000,000 | 100～ 100,000 |
Note: Calculating the shear rate：
13.33 × the current speed（For CAP-01 to CAP-03）；
3.33 × the current speed （For CAP-04 to CAP-06）；
2 ×the current speed （For CAP-07 to CAP-09）；
5 × the current speed （For CAP-10）
