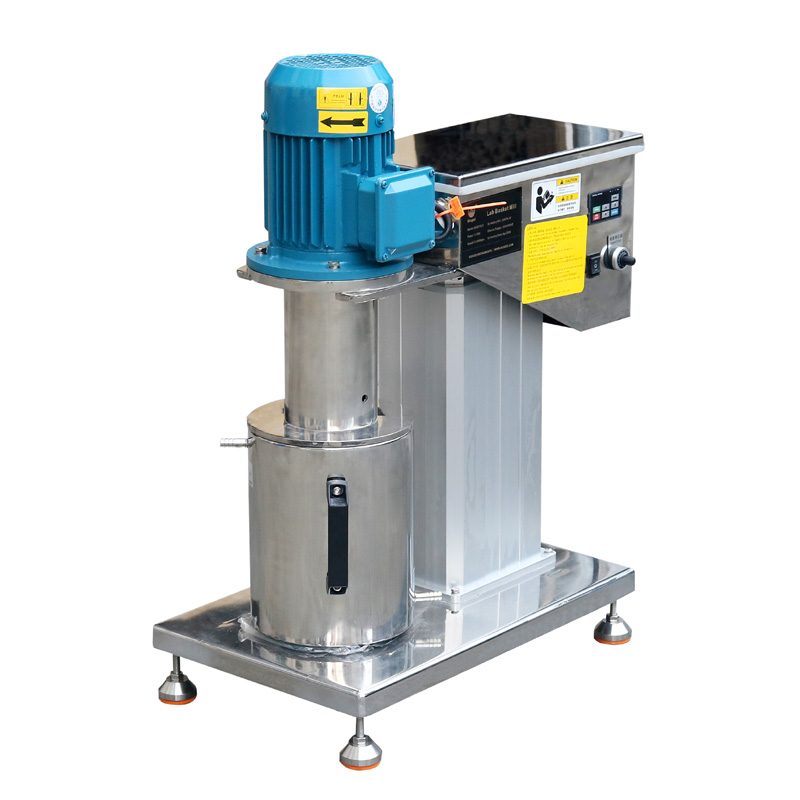

BGD 755 series Basket Mill is an integrated equipment, which combines milling and dispersing to reduce particle size for paint, coatings, inks and pigment dispersions applications. The basket mill integrates high speed dissolving and pump wheels, a very narrow particle size distribution can be achieved in this machine.
◆ Replaceable basket structure, easy to clean
◆ Easy to maintain and move from one batch to another different product production
◆ Little grinding media required
◆ Double wall milling basket and double wall container for cooling an heating is optional
◆ Excellent mill results
BGD 755/3
BGD 755/4
BGD 755/5
■ Parameter of Motor：1,100W/1,500W/2,200W; 220V 50Hz
■ Rotation Speed：900 r.p.m-2,800 r.p.m
■ Processing Capacity：5 L-20 L
■ Control Method：Stepless speed control, with digital speed display
■ Suitable Grinding Medium：95% Zirconia beads, 1.6mm-1.8mm
■ Material：The part contacting with material is SS304
■ Lifting System：Electric Lift automatically.
■ Ordering Information：
BGD 755/3—1,100W Basket Mill（5L）
BGD 755/4—1,500W Basket Mill（10L）
BGD 755/5—2,200W Basket Mill（20L）
