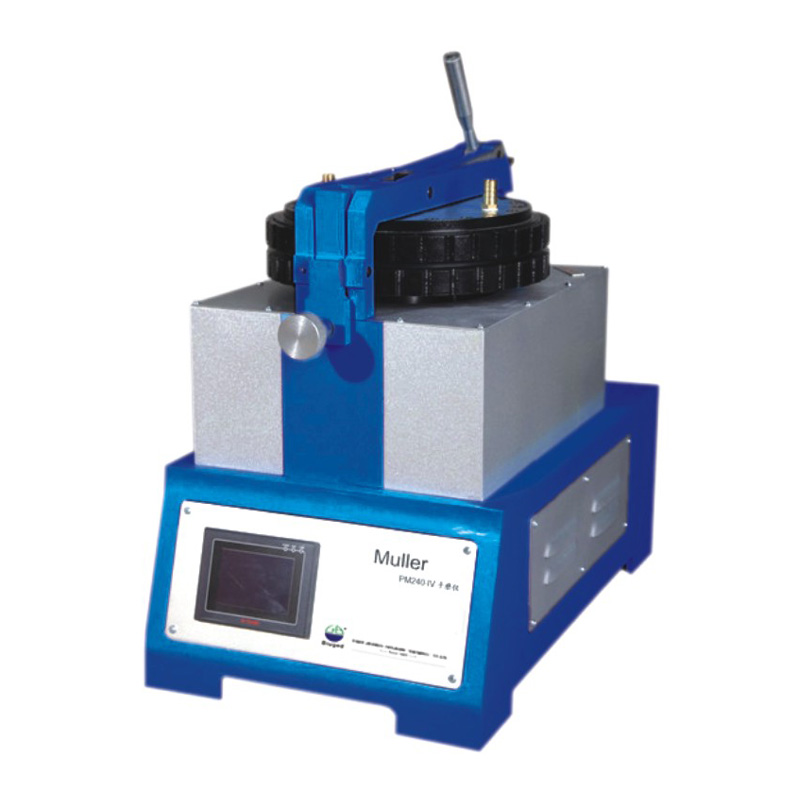

Muller Laboratory Grinder

This unit consists of a steel frame holding two ground-glass plates, the lower of which is motor driven.  A LCD screen can help operator set the total number of revolutions and automatically stops the motor once the user’s defined number of revolutions has been met. Furthermore, it also can show the total after each test cycle.

An amount of raw material is spread over a limited area of the lower glass plate. The mixture is ground in successive stages, for example 50 revolutions each, at a pressure, of 445N. Between each stage, the mixture should be redistributed within the limited area.

The BGD 650 Muller Laboratory Grinder is suitable for preparing dispersions for testing mass color and tinting strength and preparing small samples for use in the quality control of pigments

It can be used in accordance with ASTM D 387, ASTM D 332-B, ISO 8780-5, ISO 787/16.

Features：

◆ Controlled intelligently by microcomputer, counting accurately, reliable working status

◆ Touch screen and user-friendly operation interface allow operator easily to set test parameters

◆ Use coupling with flexible connection method to connect reducer with motor, has big torque, no step to lose and self-protection.

◆ Grinding glass are made of heat-resisting, pressure-resisting and colorless sight glass after precise grind, with high flatness, strong and durable and no any influence to light colored sample.

■ Motor Power：0.75KW

■ Power Voltage：380V 50Hz（220V can be Customized ）

■ Working Speed：(75±5) r/min

■ Load：43KG；64KG；100KG

■ Weights：1.75KG； 3.5KG；6.4KG

■ Grind Plate Diameter：240mm

■ Digital Displaying Range： 0 ～ 9,999
■ Overall Dimension：530mm×360mm×480mm （length by width by height）
■ Weight：80KG
■ Ordering Information：
   BGD 650—Muller Laboratory Grinder
BGD 1470—Special Glasses for Muller （1 pair/ 2 pcs）
