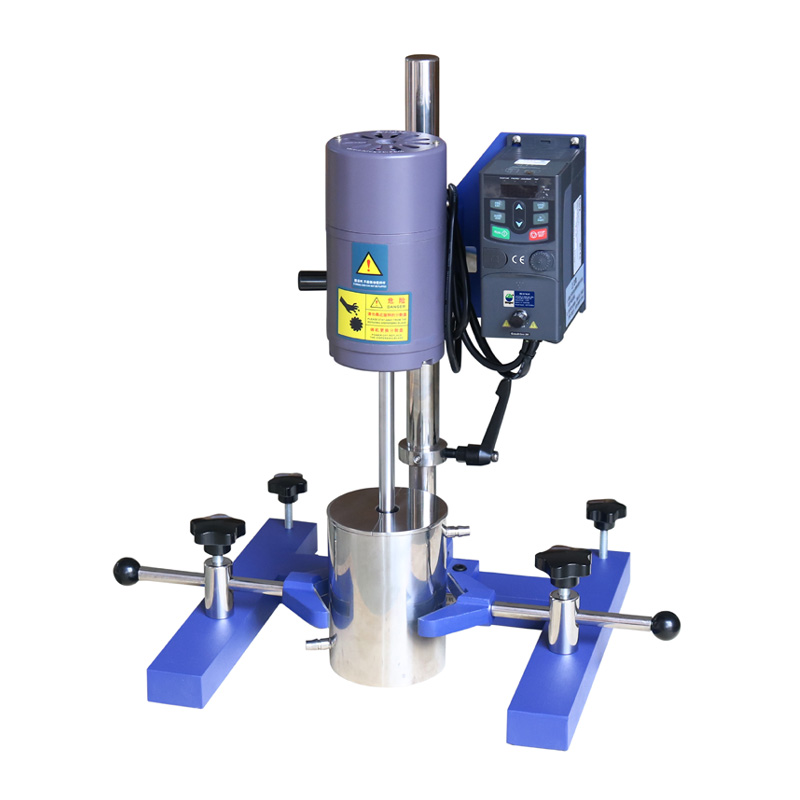

BGD 750 series Versatile Sand-Milling Dispersing-agitator is a new product designed by our company. It is equipped with two sand-milling discs, two dispersing blades and a double-layer stainless steel container. With only one machine, operator can finish such as sand-milling, high speed dispersing and mixing. Furthermore, electric lift design is very convenient for female operator.
◆ With squirrel-cage motor of frequency control and use frequency converter to adjust working speed
◆ Direct digits display axis revolution through display screen of frequency converter installed on the machine.
◆ BGD 750/1 & BGD 750/2 have lifting lever marked with scale, which are convenient to adjust
the distance of dispersing blade to container bottom.
◆ No carbon brush, no produce any flame when working
◆ Lower noise, bigger torque and wider adjustable speed
◆ Main parts are all made up of stainless steel, with perfect corrosion resistance
◆ Inlet and outlet of cooling water are equipped with fast joints, convenient for operator to install or remove quickly.
◆ Container is produced by a whole special mould, no welding line and bottom is arc structure, can be cleaned completely. Very convenient for operatore to do the different color sample.
◆ Standard Configuration: Two or four（only for 550W&750W）different size dispersing blades , two different size sand-milling blades , a stainless steel double jacket container.
◆ Power Supply: 220V 50HZ
| Ordering Information | Motor Power | Speed (r/min) | Container Capacity | Lift Distance | Lift System | Dispersing blades (mm) | Sand-Mill blades |
| BGD 750/1 | 550W | 0-7,500 | 1.25 L | 240 mm | Spring lift by hand | 35,50,60&80 | 50mm&60mm |
| BGD 750/2 | 750W | 0-6,000 | 1.25 L | 245 mm | Spring lift by hand | 35,50,60&80 | 50mm&60mm |
| BGD 750/3 | 1,100W | 0-6,000 | 3 L | 320 mm | Electric | 60&80 | 90mm&100mm |
| BGD 750/4 | 1,500W | 00-5,000 | 3 L | 320 mm | Electric | 80&100 | 90mm&100mm |
| BGD 750/5 | 2,200W | 0-4,000 | 5 L | 520 mm | Electric | 100&120 | 100mm&130mm |
| BGD 751/1 | 550W | 0-7,500 | 1.25 L | 300 mm | Electric | 35,50,60&80 | 50mm&60mm |
| BGD 751/2 | 750W | 0-6,000 | 1.25 L | 300 mm | Electric | 35,50,60&80 | 50mm&60mm |
| BGD 752/2 （Explosion-proof） | 750W | 0-3,000 | 1.25 L | 300 mm | Spring lift by hand | 35,50,60&80 | 50mm&60mm |
| BGD 752/5 （Explosion-proof） | 2,200W | 0-3,000 | 5 L | 520 mm | Spring lift by hand | 100&120 | 100mm&130mm |
The Explosion-proof Products produced by Biuged is designed to meet the highest explosion-proof standards. Its motor is equipped with a Siemens Beide explosion-proof motor (with explosion-proof certification and CCC certification), rated at IIB T4 Gb. Additionally, the explosion-proof control box features the following characteristics:
◆ Large-size design to meet the heat dissipation requirements of the frequency converter, equipped with an air circuit breaker.
◆ Explosion-proof construction with a rating of IIB T6 Gb, suitable for Zone 1 applications (unlike common products rated only for Zone 2 with Gc classification).
◆ The box is made of high-quality thickened carbon steel plate, with a thickness that fully complies with explosion-proof verification requirements and can undergo explosion resistance testing.
◆ Equipped with a motor speed adjustment knob, eliminating the need for remote or button operation, ensuring user-friendly control.
BGD 750/1-J-019—Extend Shaft for Dispersing Blade（25mm length，For BGD 741）
BGD 750/1-J-020—Extend Shaft for Dispersing Blade（40mm length，For BGD 741）
BGD 750/Z-001—35 mm Dispersing Blade
BGD 750/Z-002—50 mm Dispersing Blade
BGD 750/Z-005—60 mm Dispersing Blade
BGD 750/Z-008—80 mm Dispersing Blade
BGD 750/Z-009—100 mm Dispersing Blade
BGD 750/Z-010—120 mm Dispersing Blade
BGD 750/Z-011—150 mm Dispersing Blade
BGD 750/Z-012—200 mm Dispersing Blade
BGD 750/Z-013—50mm Super Wear-Resistant Sand-milling Blade
BGD 750/Z-014—60mm Super Wear-Resistant Sand-milling Blade
BGD 750/Z-015—90mm Super Wear-Resistant Sand-milling Blade
BGD 750/Z-016—100mm Super Wear-Resistant Sand-milling Blade
BGD 750/Z-017—130mm Super Wear-Resistant Sand-milling Blade
BGD 750/Z-018—0.3 L Dispersing Container
BGD 750/Z-019—0.5 L Dispersing Container
BGD 750/Z-020—1.25 L Dispersing Container
BGD 750/Z-021—3 L Dispersing Container
BGD 750/Z-022—5 L Dispersing Container
BGD 750/Z-023—10 L Dispersing Container
BGD 750/Z-024—20 L Dispersing Container
BGD 752/2-J-011—Stand for Explosion-proof box
Biuged Containers Size
| Ordering Information | BGD 750/Z-018 | BGD 750 /Z-019 | BGD 750 /Z-020 | BGD 750 /Z-021 | BGD 750 /Z-022 | BGD 750 /Z-023 | BGD 750 /Z-024 |
| Volume | 0.3 L（Single-wall） | 0.5 L | 1.25 L | 3 L | 5 L | 10 L | 20 L |
| Inner Diameter | 73 mm | 85 mm | 103 mm | 129 mm | 164 mm | 214 mm | 268 mm |
| Inner Depth | 71 mm | 95 mm | 165 mm | 236 mm | 253 mm | 282 mm | 355 mm |
| Welded Bottom | √ | √ | √ | √ | √ | √ | |
| Arc Bottom | √ | ||||||
| Handle | √ | √ | √ | √ |
Dispersing Blade
Sand-milling Blade
Dispersing Container
