When the sample is dispersed or milled, in order to achieve the best working efficiency, operator should choose suitable size dispersing blades，milling blades or containers according to the sample viscosity, quantities or other physical features.
Biuged has rich experience for designing and producing these dispersing blades, milling blades and containers.
All dispersing blades are made of special abrasion resistance stainless steel, and produced by precise mould. The number of dispersing teeth and the angle of inclination are designed as European products, which can make the sample occur turbulent flow easily and increase dispersing efficiency. Furthermore, Biuged also designs efficient dispersing blades which are used for low viscosity sample, threr are four arc holes in its surface, which can disperse sample smaller and uniform.
For milling blades, all materials are special grade super abrasion resistance PTEE, which can lengthen service life to 2-3 times compared to similar goods on the market, furthermore, these blades have a high concentricity, so the working noise is low.
Biuged also offers different volume dispersing containers, they are all made of good quality thicken stainless steel（both inner wall and outer wall are more than 5mm）. Except 0.3L, other contains are designed with double-wall which can add cooling water. Furthermore, the inlet and outlet are designed with quick couplings which are very convenient for operator to insert or remove cooling pipes.

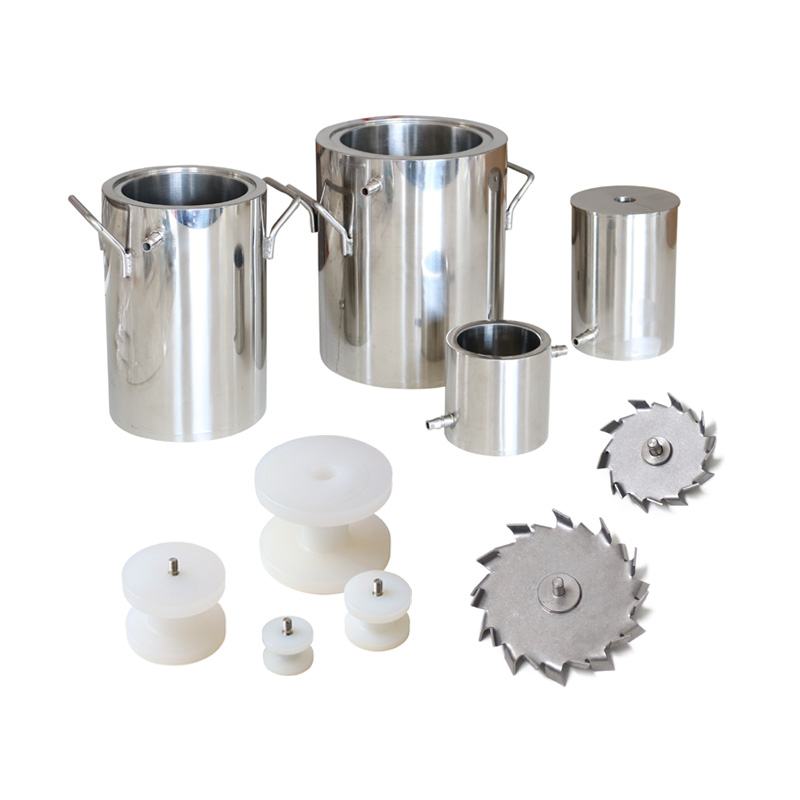

Heavy Duty Dispersing Blade
Sand-milling Blade
Dispersing Container
BGD 750/1-J-019—Extend Shaft for Dispersing Blade（25mm length，For BGD 741）
BGD 750/1-J-020—Extend Shaft for Dispersing Blade（40mm length，For BGD 741）
BGD 750/Z-001—35 mm Dispersing Blade
BGD 750/Z-002—50 mm Dispersing Blade
BGD 750/Z-005—60 mm Dispersing Blade
BGD 750/Z-008—80 mm Dispersing Blade
BGD 750/Z-009—100 mm Dispersing Blade
BGD 750/Z-010—120 mm Dispersing Blade
BGD 750/Z-011—150 mm Dispersing Blade
BGD 750/Z-012—200 mm Dispersing Blade
BGD 750/Z-013—50mm Super Wear-Resistant Sand-milling Blade
BGD 750/Z-014—60mm Super Wear-Resistant Sand-milling Blade
BGD 750/Z-015—90mm Super Wear-Resistant Sand-milling Blade
BGD 750/Z-016—100mm Super Wear-Resistant Sand-milling Blade
BGD 750/Z-017—130mm Super Wear-Resistant Sand-milling Blade
BGD 750/Z-018—0.3 L Dispersing Container
BGD 750/Z-019—0.5 L Dispersing Container
BGD 750/Z-020—1.25 L Dispersing Container
BGD 750/Z-021—3 L Dispersing Container
BGD 750/Z-022—5 L Dispersing Container
BGD 750/Z-023—10 L Dispersing Container
BGD 750/Z-024—20 L Dispersing Container
BGD 752/2-J-011—Stand for Explosion-proof box
Biuged Containers Size
| Ordering Information | BGD 750/Z-018 | BGD 750 /Z-019 | BGD 750 /Z-020 | BGD 750 /Z-021 | BGD 750 /Z-022 | BGD 750 /Z-023 | BGD 750 /Z-024 |
| Volume | 0.3 L（Single-wall） | 0.5 L | 1.25 L | 3 L | 5 L | 10 L | 20 L |
| Inner Diameter | 73 mm | 85 mm | 103 mm | 129 mm | 164 mm | 214 mm | 268 mm |
| Inner Depth | 71 mm | 95 mm | 165 mm | 236 mm | 253 mm | 282 mm | 355 mm |
| Welded Bottom | √ | √ | √ | √ | √ | √ | |
| Arc Bottom | √ | ||||||
| Handle | √ | √ | √ | √ |
