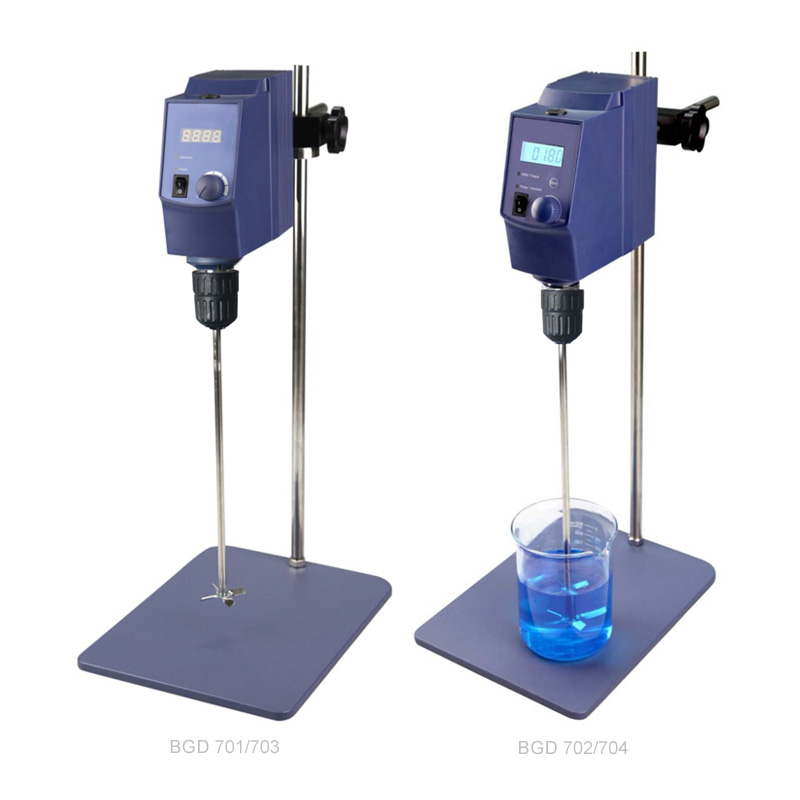

These newest stirrers are of the highest quality. The core a direct current brushless motor is explosion-proof and overcomes the disadvantages of traditional stirrers. The stirrers can operate under high load for an extended period of time without any need for maintenance.
◆ High reliability and outstanding performance.
◆ LCD display for precise monitoring of set and actual speeds, a wide range of speed from 50 to 2200rpm with control accuracy of ±3rpm（BGD 702&BGD 704&BGD 706）.
◆ Brushless DC motor for long life, maintenance free and explosion proof Torque trend display for real-time information on viscosity changes.
◆ Safety circuits allow for safe stop function in anti-stall or overload conditions.
◆ Smooth operation prevents accidental spillage and splashing.
◆ Provides constant speed even with changes in viscosities of the samples.
◆ Remote function provide PC control and data transmission.
◆ Availability of auto-restart function in case of power loss for overnight operations.
| Ordering Information → Parameters ↓ | BGD 701 | BGD 702 | BGD 703 | BGD 704 | BGD 706 |
| Max. Stirring Capacity（water） | 20 L | 40 L | 70 L | ||
| Motor Rating Input, W | 60 W | 120 W | 180 W | ||
| Motor Rating Output, W | 50 W | 100 W | 160 W | ||
| Power | 70 W | 130 W | 200 W | ||
| Timing Function | — | 0～99h 59min | |||
| Speed Range, rpm | 50-2,200 rpm | 50-1,100 rpm | |||
| Speed Display Accuracy,rpm | ± 3 rpm | ± 10 rpm | |||
| Display | LED | LCD | LED | LCD | LCD |
| Voltage/Frequency | 100V～240V；50HZ/60HZ | ||||
| Max. Torque | 40 N.cm | 60 N.cm | 300 N.cm | ||
| Max. Viscosity | 10,000 mPa.s | 50,000 mPa.s | 100,000 mPa.s | ||
| Chuck Range Diameter | 0.5mm-10mm | ||||
| Dimension（W×H×D） | 83x220x186 mm | ||||
| Weight | 2.4 KG | 2.8 KG | 3.2 KG | ||
| Packing List | ① LCD or LED digital overhead stirrer head—-1 pc ② Flat Base —1 pc（Big base is optional for BGD 705） ③ Main Pole——1 pc ④ Dispersing pole with four leaf——-1 pc | ||||
