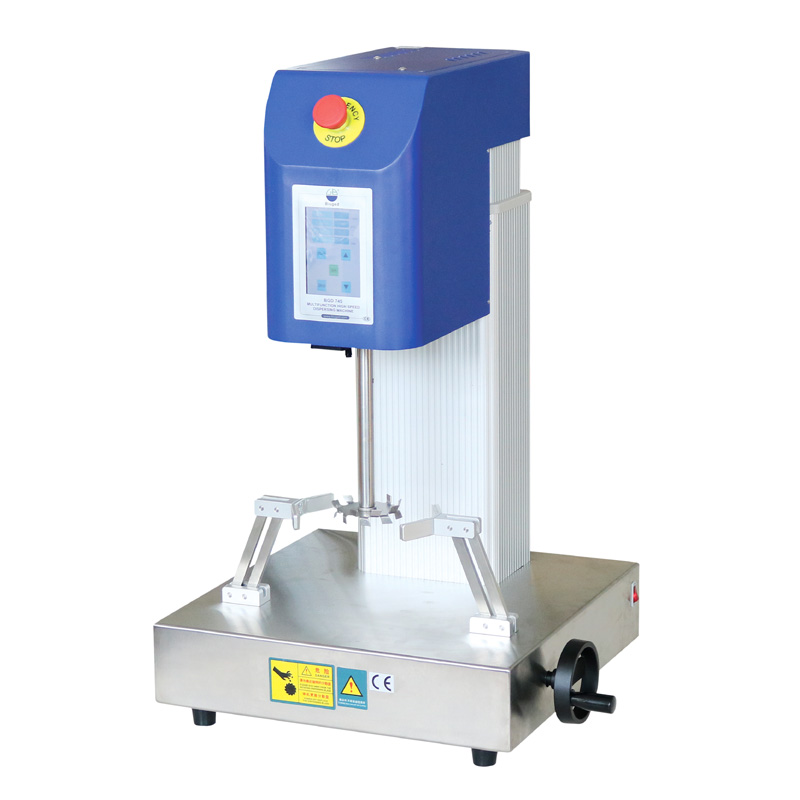

Multifunction High Speed Dispersing Machine

Main Features

◆ New brushless DC motor：Has wider adjustable working speed, ultra-low noise when working（avoid electromagnetic noise from tradition AC motor）.Moreover, DC motor has a feedback system to working speeding and can monitor speed more precisely.

◆ Touch screen design：Setting working parameters become more simple and easy. All state parameters are shown directly and clearly, easy to operate.

◆ Show directly linear velocity of current dispersing blade, save time to calculate linear velocity by dispersing blade size and working speed for operator.

◆ New auto location clamping device for container：Rotate locking handle to fasten container at the central position automatically, safe, simple and convenient.

◆ High quality one body mixer shaft：Made up of high quality 304SS, anti-corrosion and easy to clean.

◆ Monitor sample temperature：With infrared temperature probe, can real-time monitor dispersed sample without touching sample. Operator also can set a certain temperature by touch screen for preventing sample changing because of over heat generating from milling.

◆ Timing device for dispersing：Operator can set dispersing time, the machine would be stopped automatically when arrive this time

◆ Can choose arc bottom container with double-layer and sand-mill blades for bead mill.

Operation Menu

Measure Sample Temperature with infrare

■ Motor Power：1000W（Brushless DC motor）
■ Adjustable Working Speed：200～6,000r/min
■ Lift Distance：260mm
■ Overall Dimension：450mm×450mm×700mm（motor is the lowest position）
■ Net Weight：40KG
■ Come with dispersing blades：Φ50mm and Φ80mm, one each.
■ Ordering Information：BGD 745—Multifunction High Speed Dispersing Machine

BGD 750/Z-001—35 mm Dispersing Blade

BGD 750/Z-002—50 mm Dispersing Blade

BGD 750/Z-005—60 mm Dispersing Blade

BGD 750/Z-008—80 mm Dispersing Blade

BGD 750/Z-009—100 mm Dispersing Blade

BGD 750/Z-010—120 mm Dispersing Blade

BGD 750/Z-011—150 mm Dispersing Blade

BGD 750/Z-012—200 mm Dispersing Blade

BGD 750/Z-013—50mm Super Wear-Resistant Sand-milling Blade

BGD 750/Z-014—60mm Super Wear-Resistant Sand-milling Blade

BGD 750/Z-015—90mm Super Wear-Resistant Sand-milling Blade

BGD 750/Z-016—100mm Super Wear-Resistant Sand-milling Blade

BGD 750/Z-017—130mm Super Wear-Resistant Sand-milling Blade

BGD 750/Z-018—0.3 L Dispersing Container

BGD 750/Z-019—0.5 L Dispersing Container

BGD 750/Z-020—1.25 L Dispersing Container

BGD 750/Z-021—3 L Dispersing Container

BGD 750/Z-022—5 L Dispersing Container

Dispersing Blade

Sand-milling Blade

Dispersing Container
