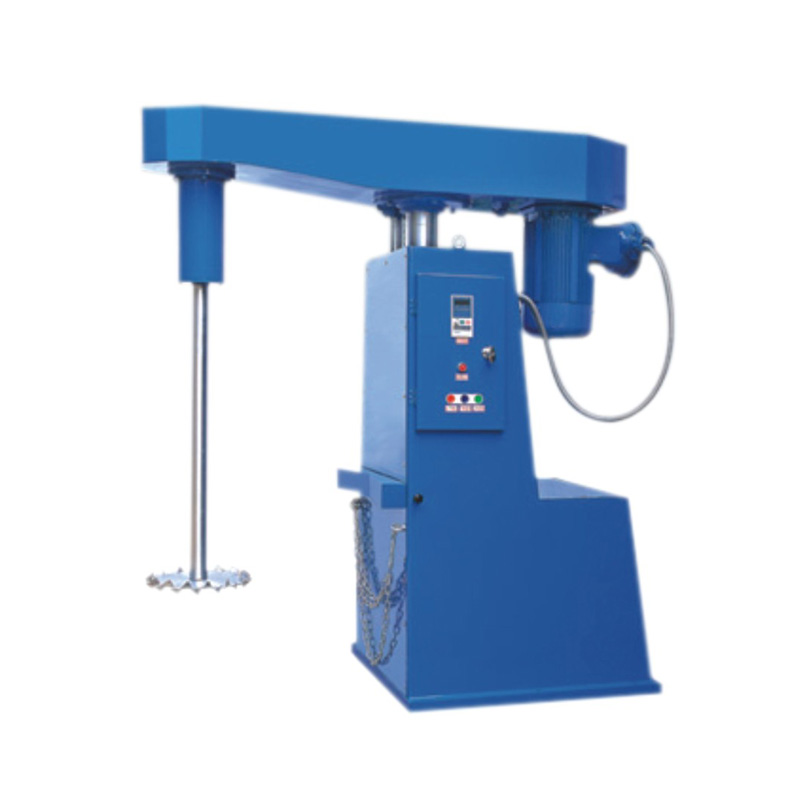

Single-shaft High Speed Dispersers are commonly used in chemical for mixing and distribution with variable frequency speed adjustment；Currently available for customers to choose from the ordinary or the explosion-proof models.
Items of this equipment with blade distributor, oar distributor or anchor distributor are designed on request with variable specifications of power. With hydraulic lift system, these machines’ lift distance and centre distance between the base and the scattered axles.
If required, User-friendly hydraulic lift system of 180° rotation is available, it easily operated.
| Ordering Information → Main Technical Pararmeters ↓ | BGD 8011 | BGD 8013 | BGD 8015 | BGD 8017 | BGD 8018 |
| Motor Power | 7.5 KW | 11 KW | 15 KW | 18.5 KW | 22 KW |
| Total Power | 9 KW | 13 KW | 17 KW | 21 KW | 25 KW |
| Working Travel（mm） | 900 | 900 | 1000 | 1000 | 1200 |
| Adjustable Speed | 0～1450 r.p.m | ||||
| Suitable Container Capacity（L） | 300～500 | 300～600 | 400～700 | 500～800 | 500～1000 |
| Including Dispersing Blades(mm) | Φ250、Φ280 | Φ250、Φ280 | Φ280、Φ300 | Φ280、Φ300 | Φ300、Φ320 |
| Overall Size （cm） | 170×80×180 | 175×80×180 | 180×90×180 | 195×90×205 | 195×90×205 |
