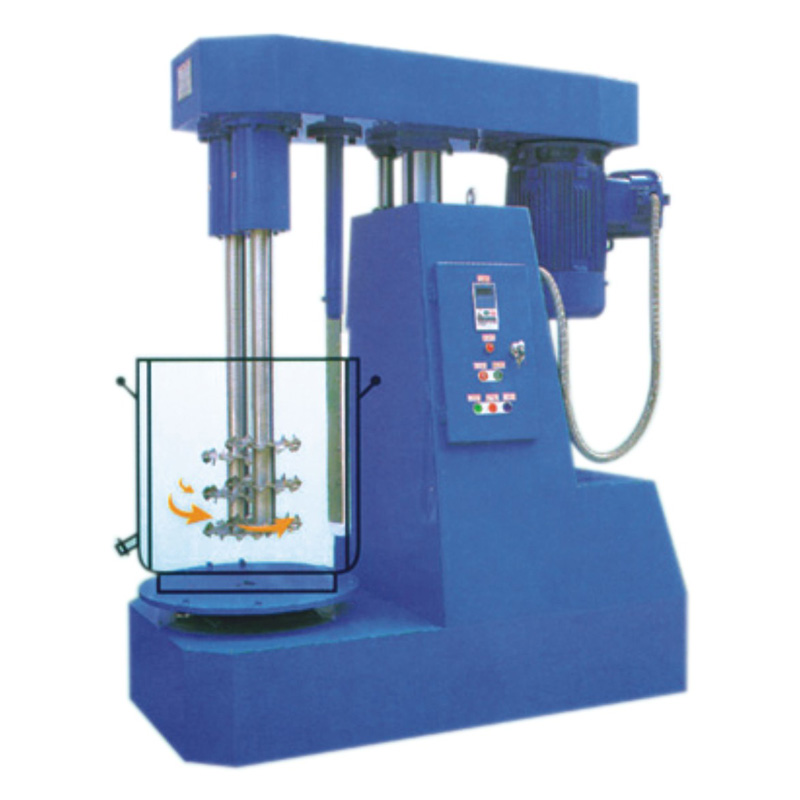

The perfect combination of BGD series of speed-adjustable stringed-plate Dual-shaft High Speed Disperser enables the mixing, distribution, grind and package of materials with very high stickiness to be finished in one consecutive process at one machine, 10-20 times more efficient than ordinary distributor and grinder, Ground materials as fine as 5-10 μm, this is absolute breaking-through in the mixing, distribution, grind and package of materials with very high stickiness, and is widely used for high-glass atom ash, sticker pulp, rendering, cosmetics, food, salve, ink etc.
Characteristics：
◆ Stringed plates on dual-axle ensures fast mixing and dispersion.
◆ Rotary blade unit inside the cylinder prevents the mixture from sticking to the wall and ensures thorough dispersion
◆ Speed-adjust unit makes it easy to change speed.
◆ Cooling system in the secret compartment of the bucket provides effective protection for temperature -sensitive materials.
◆ Hydraulic lift.
◆ User-friendly service vehicle accessory to the machine eases laborintensity.
| Ordering Information → Main Technical Pararmeters ↓ | BGD 8021 | BGD 8023 | BGD 8025 | BGD 8027 | BGD 8028 |
| Motor Power | 7.5 KW | 11 KW | 15 KW | 18.5 KW | 22 KW |
| Total Power | 10 KW | 14.5 KW | 18.5 KW | 22.5 KW | 26.5 KW |
| Adjustable Speed | 0～1450 r.p.m | ||||
| Working Travel（mm） | 800 | 1000 | 1000 | 1000 | 1200 |
| Includig Single-layer Stainless Steel Container（L） | 2×100L | 2×150L | 2×200L | 2×300L | 2×400L |
| Including Dispersing Blades( mm) | 170 or 180 | 180 or 200 | 200 or 210 | 220 or 230 | 230 or 250 |
| Overall Size （cm） | 155×75×175 | 175×80×175 | 175×80×175 | 190×85×205 | 190×90×205 |
Note：Each shaft is equipped three same diameter dispersing blades, these total six blades are distributed well-proporationed at two shafts.
