BGD 184 Stormer Viscometer is used for measuring the viscosity of Newtonian and non-newtonian fluids in accordance with ASTM D562. The viscosity of a non-newtonian material varies depending on the rate of shear, but Krebs Stormer Viscometer can measure the viscosity at a set speed shear rate which provides a consistent standard.
Based on the popular traditional KREBS method, using a weight-driven rotating paddle to sense the paint viscosity at a constant 200 rpm, this modern digital instrument provides automated motor operation, without weights & pulley, allowing accurate direct reading in KU （Krebs units）or g （gram）. The conversion between these units is automatically calculated by the microprocessor and displayed on request. Sturdy construction allows for use either in a production environment or in the laboratory.
◆ LED digital display gives the reading in Krebs units or grams.
◆ Magnetic rotor enables rapid installing, dismantlement or cleaning.
◆ Self protection function under over-range.
◆ Come with Calibration Certificate
Main Technical Parameters
■ Range：40.2KU～141.0KU（27-5,250 cP）
■ Accuracy：±1.0% of full scale range
■ Repeatability：±0.5% of full scale range
■ Paddle Speed：200r/min±0.1r/min
■ Overall Dimensions：210mm×180mm×500mm（length by width by height ）
■ Package Size：560mm×450mm×280mm
■ Package Weight：9.2 KG
■ Ordering Information：
BGD 184—Krebs Stormer Viscometer
BGD 186/J-042–—Special Paddle for Paste
BGD 1600/Z-012—Standard Oil for Krebs Stormer Viscometer （67.2 KU）
BGD 1600/Z-013—Standard Oil for Krebs Stormer Viscometer （86.3 KU）
BGD 1600/Z-014—Standard Oil for Krebs Stormer Viscometer （106.6 KU）
BGD 1600/Z-015—Standard Oil for Krebs Stormer Viscometer （121.5 KU）

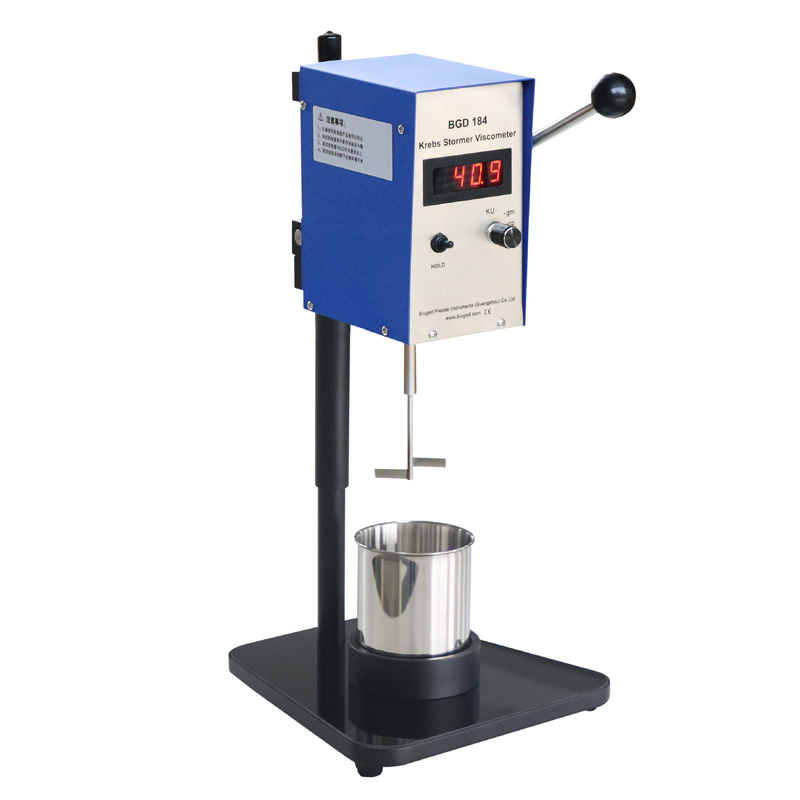

BGD 184 Krebs Stormer Viscometer
