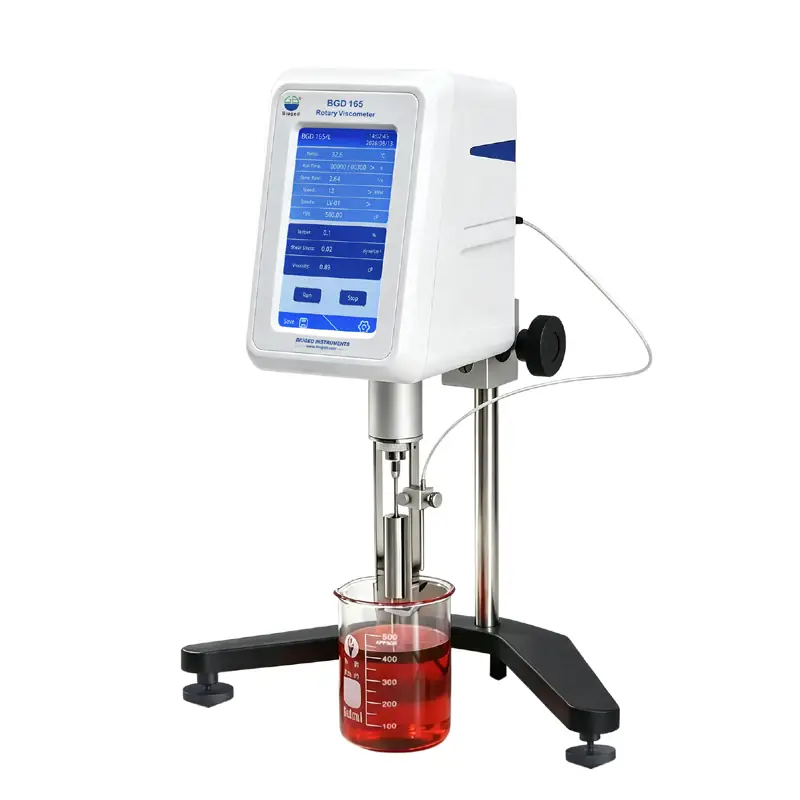

BGD 164&BGD 165 Professional Rotary Viscometers are developed by Biuged based on the BGD 162 model. They feature stepless speed adjustment, a wider selection of rotor types, an expanded measurement range, and the following characteristics
◆ Compliance with Standards: Conforms to ISO 1652, ISO 2555, ISO 3219, ASTM D2196, ASTM D2983, and others.
◆ 7-inch HD Touchscreen: Simple and convenient operation, directly displaying viscosity, rotational speed, torque, the maximum measurable viscosity value for the rotor at the current speed, and other information.
◆ High-resolution Stepper Motor Drive: Enables stepless speed adjustment with accurate and stable rotation, low noise operation, and unaffected measurement accuracy by AC voltage frequency variations.
◆ Built-in High-precision Electronic Spirit Level: Direct on-screen display of the instrument’s level status, allowing operators to quickly adjust leveling.
◆ Magnetic Rotor Mounting System: Reduces damage to the spindle during rotor changes, enhancing spindle durability.
◆ Built-in RTD Temperature Probe
◆ New Durable Spindle Design
◆ Switching Power Adapter: Wide input voltage range with strong anti-interference capabilities.
◆ Real-time Sampling Technology: Allows observation of viscosity changes in real-time even at low speeds, eliminating waiting time.
◆ Gelation Time Measurement via Timer Mode: Real-time torque detection enables sensitive measurement even at very low rotational speeds.
◆ Multiple Viscosity Unit Conversion: Automatic conversion between dynamic viscosity and kinematic viscosity.
◆ Factory Calibration & User Recalibration: Linearly calibrated by computer before shipment, with the capability for users to perform independent calibration.
◆ Standard USB Interface: Supports external USB drive for data storage.
| Ordering Information → Parameters ↓ | BGD 164/L | BGD 164/M | BGD 164/H | BGD 165/L | BGD 165/M | BGD 165/H |
| Measurement Range (mPa.s) | 1-6M | 100-40M | 800-320M | 1-6M | 100-40M | 800-320M |
| Rotate Speed（r.p.m） | 0.1-100 | 0.1-200 | ||||
| Rotors | 4 | 6 | 6 | 4 | 6 | 6 |
| Measurement Accuracy | ±1.0% (of the full range) | |||||
| Repeatability | ±0.5% (of the full range) | |||||
| Power Supply | Power Adapter （Input：110/220 V；50 /60 Hz； Output：12V；2A) | |||||
| Optional Accessories | BGD 162/Z-004—UL Adapter（LV0 rotor + Specified Container） BGD 168/Z-003—Small Sample Adapter（SC21，SC27，SC28，SC29 four rotors，and the max. measure range would be changed） | |||||
(M=1 million)
