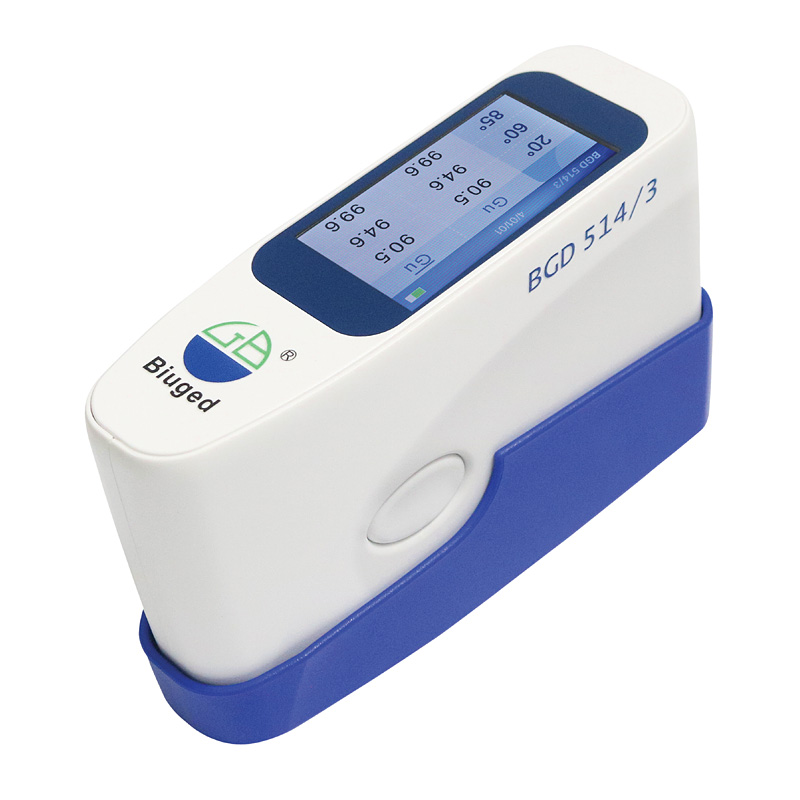

Intelligent Touch-screen Glossmeter

Features：

◆ Conform Standards：ISO 2813、ISO 7668、ASTM D 523、ASTM D 2457、DIN 67530、JIS Z 8741、BS 3900、BS 6161 etc.

◆ 3 inch color touch screen with high resolution, clear display and sensitive response. The interface is intuitive and easy to use, and

users can quickly enter different menu modes.

◆ Intelligent USB interface, charging and data transmission are integrated, without any software installation. The measurement data is

stored in EXCEL form, and users can transfer it to the computer or mobile phone at any time. Simple operation, convenient and fast.

◆ Calibration Automatically：When turn on the glossmeter, it will measure standard board automatically and finish calibration.

◆ With data storage and querying functions：Super capacity for data storage space, can store one million groups data, and can store for

20 yeas.

◆ Multifunction：Can set any measuring times for one sample and calculate its average value automatcially, set auto shut-off time,

buzzer etc.

◆ Multilingual：Chinese, English, Arabic, Portuguese, Spanish, Russian, French

◆ Many measuring angle modes for choose：Single angle measuring mode（20º or 60 ºor 85 º）and multi angle measuring mode

（20º& 60 ºor 60 º & 85 ºor 20º、60 º、85 º）；

◆ Come with calibration certificate.

◆ After service：One year warranty and lifelong maintenance.

◆ Low power consumption design, can use it for 10 hours when full power and 100% screen luminance, 12 hours when 50% screen

luminance.

Main Technical Parameters

■ Measuring Range：0.0 ~ 2000 GU（20°）;0.0 ~ 1000 GU（60°）; 0.0 ~ 160 GU（85°）

■ Accuracy：≤ ±1.5GU

■ Zero Error：≤ 0.1 GU

■ Stability：≤ 0.2 GU/30min

■ Resolution：0.1 GU（＜120 GU）or 1GU（≥120 GU）

■ Measuring Area：20º：8.5mm×10mm;  60º：16mm×10mm;  85º：35mm×5mm

■ Power Supply：In-built chargeable lithium battery

■ Dimension：160mm×50mm×90 mm（including holder, L×W×H）
■ Weight：400g

■ Ordering Information：

BGD 514 /1—- Intelligent Touch-screen Glossmeter（60°）

  BGD 514 /3—- Intelligent Touch-screen  Tri-Glossmeter（20°/60°/85°）

BGD 514 Intelligent Touch-screen Glossmeter.pdf
