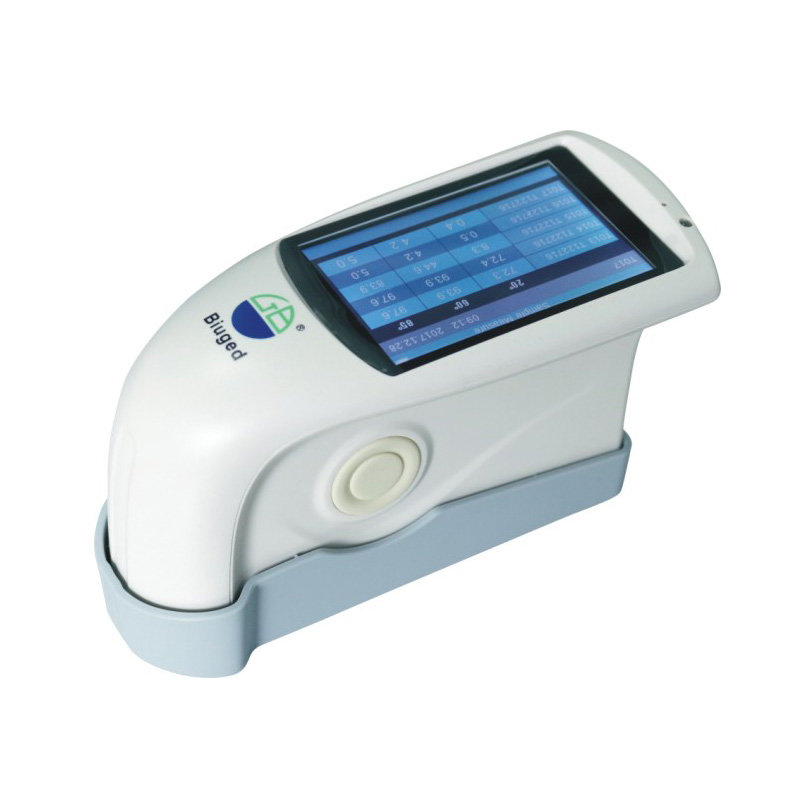

These basic glossmeters use plastic shell, in-built standard board and have portable small size. It is designed to measure gloss of paint，film，ink，plastics，stone，paper，tile，enamel，etc.
Features:
◆ Conform ISO 2813, ASTM D 523, ASTM D 2457 etc
◆ Cost-effective, easy operation, small size, stable performance and high precision
◆ 3 . 5 inch color screen, high resolution（4 8 0 * 3 2 0）, full-view
◆ Chinese and English for selection
◆ Show 5 groups of testing results Simultaneously, convenient to compare
◆ For BGD 515/S, three angle（20°/60°/85°）can test simultaneously
◆ Data storage function, max. is 1,000 groups
◆ Come with QC software, can inquire and store testing data, or print quality report
◆ Calibrate automatically when turn on
◆ Built-in lithium ion rechargeable battery
◆ USB/RS 232 interface, can select mini-printer to print testing data
◆ Auto power-off
◆ BGD 518/S Curve Glossmeter is specially used for curve or small area samples
| Ordering Information → Technical Parameters ↓ | BGD 512/S Glossmeter(60°) | BGD 518/S Curve Glossmeter(60°) | BGD 515/S Tri-Glossmeter(20°、60°、85°) |
| Measuring Range | 0～300 GU | 0～1000 GU | 20°/60°：0～1000 GU 85°：0～160 GU |
| Measuring Aperture | 9mm×15mm | 1.5mm×2mm | 20°：10mm×10mm 60°：9mm×15mm 85°：5mm×36mm |
| Resolution | 0.1 GU | ||
| Repeatability | ± 0.2% | ||
| Reproducibility | ± 0.5% | ||
| Accuracy | ± 1.5 GU | ||
| Response Time | 0.5 s | ||
| Overall Size（L×W×H） | 160mm×75mm×90mm | ||
| Net Weight | 350 g | ||
| Power Supply | 3200mAh Li-ion Battery ，>10000 times（within 8 hours） | ||
| Come With | Power Adapter, USB cable, Manual,Software CD, Calibration Plate（built-in glossmeter） | ||
