Automatic Film Applicator enables experimental chemists to conveniently draw down precise coating film on the different substrates so as to reduce and eliminate errors caused by manual factors. Factors affecting the draw down are the shear rate and downward force applied to the applicator tool. It greatly improves the reproducibility of paint film.

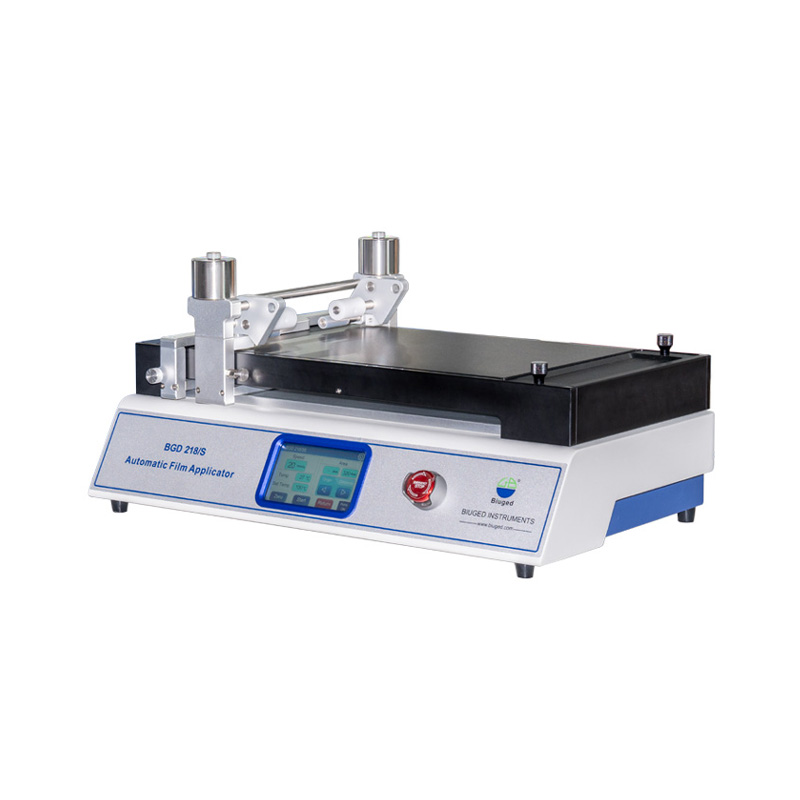

BGD 218/3 is the newest automatic film applicator, comparing the traditional products, they have:
◆ Wide-range stepless speed regulation：5mm/s ~500mm/s
◆ High precision linear guides to ensure the draw down speed be more stable.
◆ The meticulously designed coating film holder simplifies operation and allows flexible load capacity expansion to accommodate easily bendable test panels
◆ Can set the starting point freely, is suitable for different size substrates
◆ Applicable to all Biuged’s different type and size applicators and wire bars
◆ Better repeatability for applicating film：pecial precise machining vacuum suction-gas plate with high smooth precision（Whole plate ‘s flatness is less than 5 micron）and special hardening treatment，ensure all kinds of substrate could be adsorbed smoothly and tightly.
◆ Optimal design for vacuum plate to ensure suction power is distributed uniformly
◆ External vacuum pump eliminate all shake coming from traditional structure（put pump into machine）

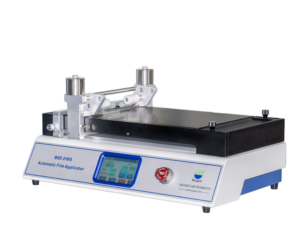

BGD 218/3 ( with Heating )
| Ordering Information → Technical Parameters ↓ | BGD 218/3 Automatic Film Applicator （With Heating） |
| Method of Fixing Substrate | Vacuum adsorption |
| Applicating Platform | Hard anodic oxidation aluminum with vacuum holes |
| Drawdown Bed Size | 360 mm × 250 mm |
| Vacuum Bed Size with Hole | 290 mm × 190mm |
| Max. Application Length | 250mm |
| Applicating Distance | 25%-50%-75%-100% |
| Adjustable Draw down Speed | 5mm/s～500mm/s |
| Carriage Holder Weight | 500g×2pcs（1KG or 1.25KG is optional） |
| Total Power | 750W |
| Temperature Range | RT+5℃～100℃ |
| Temperature Uniformity | ±5℃ |
| Power Source | 220V；50Hz |
| Weight | 42 KG |
| Overall Size （No vacuum pump） | 500mm×345mm×340mm（L×W×H） |
BGD 218/3 Automatic Film Applicator with Heater (Operation)
