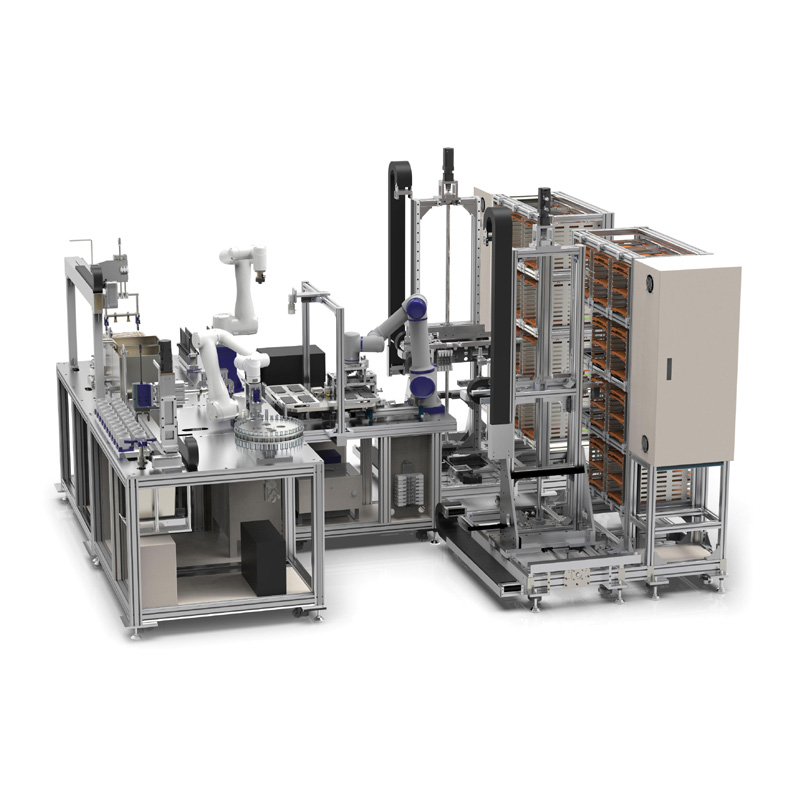

Automatic Preparation System for Test Specimens of Architectural Coatings

◆ Fully automatic batch preparation of test specimens, almost without manual participation, to meet the needs of large-scale

preparation of specimens with high consistency.

◆ Specimens digital management is adopted, which can encode and record coating specimens and prepared specimens, so as to

realize the traceability management of specimens.

◆ According to the requirements of the different standards, operator can finish specimens preparation on Chart, PVC Film and

Asbestos-free Cement Panel automatically.

◆ Use robot-arm to applicate coating films. This system includes a vacuum drawdown plate and a common plate for cement panels,

which can achieve uniform coating film easily on different substrates.

◆ Blank test panels is automatically fed according to the demands, and automatically unloaded to the standard specimens tray

after finishing coating , which is convenient for maintenance.

◆ Automatic cleaning device for applicating tools: after finishing one coating film, the applicating tools will be automatically

cleaned, and then the next coating film will be carried out.

◆ The system adopts friendly human-computer interface, with intuitive display, convenient operation and real-time monitoring of

running status.

Main Technical Parameters:

■ Specification and Capacity of Test Specimens：250mm×140mm Charts（50pcs）;

150mm×70mm Asbestos-free Cement Panels（500 pcs）；

430mm×150mm Asbestos-free Cement Panels（100 pcs）;

432mm×165mm Black Plastic Panels（100 pcs）

■ Specimens Preparation Rate：20 samples per 12 hours（about 400pcs test specimens）or 10 samples per 10 hours（about 200pcs test specimens）

■ Single Working Cycle：10~12 hours（10~20 samples）

■ Applicating Tools Capacity：4 sets of specimens preparation

■ Number of Specimens Trays：20 sets of specimenss

■ Cover Area：approximate 30m2

■ Total Power：5 KW

■ Ordering Information:  BGD 360—Automatic Preparation System for Test Specimens of Architectural Coatings
