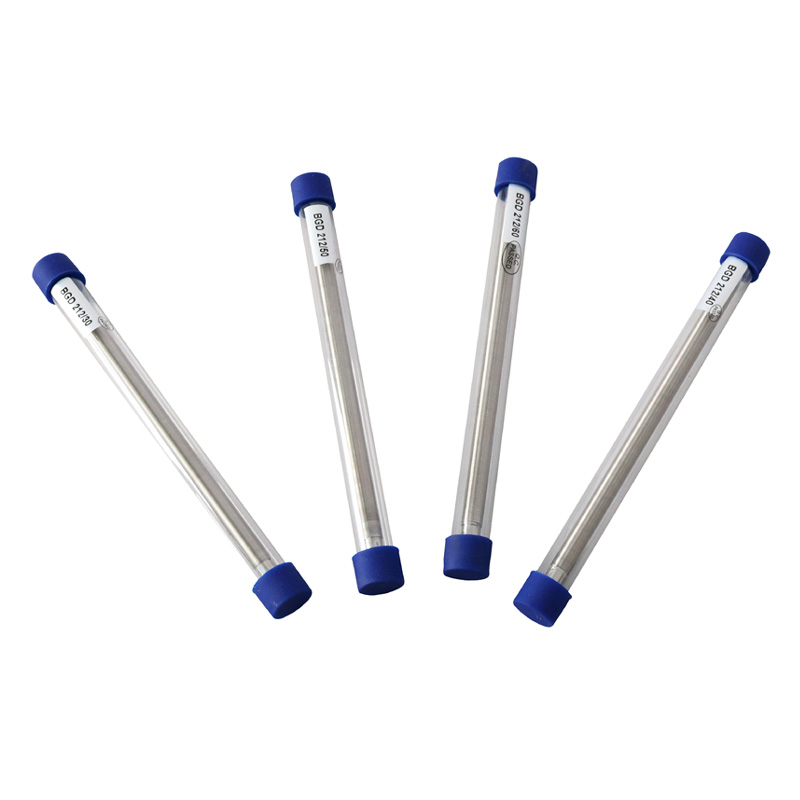

The wire and its rod from the wire-wound rods are made of stainless steel，which are corrosion-resistance. A coating（Paint or Ink）is being drawdown by a known thickness wire-rod applicator over a substrate（eg. Black/White Test Chart, Glass or Wood Panel, etc.）onto our Drawdown Board. The motion of the drawdown is done by gripping the 2 edges of the applicator or by using the Holder
These applicators provide an economical way to assure the uniformity of thickness of very thin films.
◆ Bar and wire manufactured of stainless steel
◆ Perfect for very thin films, e. g. foils and paper coating tests
◆ Ideal for flexible materials such as paper, cardboard, test charts, foils, leather, textiles, etc.
◆ Maximum attainable wet film thickness engraved on bar end
◆ Simultaneous drawdown of several samples side by side is possible
Note: All rods produced by Biuged are distinguished by its wire diameter or groove depeth. For example, we mark 1.0mm wire diameter as 100 um wire-wound rod, 100 um is only theoretical wet film thickness, and the achieved fact wet film thickness is only 75%～80% of theoretical value.
■ Effective Wire-Wounding Length：200mm
■ Bar Total Length：240mm
■ Theoretical Wet Film Thickness（µm）available：6-8-10-12-15-20-25-30-40-50-60-80-100-120-150-200
■ Bar Diameter：10mm
■ Ordering Information：
BGD 212/6—6µm Wire-wound Rod
BGD 212/8—8µm Wire-wound Rod
BGD 212/10—10µm Wire-wound Rod
BGD 212/12—12µm Wire-wound Rod
BGD 212/15—15µm Wire-wound Rod
BGD 212/20—20µm Wire-wound Rod
BGD 212/25—25µm Wire-wound Rod
BGD 212/30—30µm Wire-wound Rod
BGD 212/40—40µm Wire-wound Rod
BGD 212/50—50µm Wire-wound Rod
BGD 212/60—60µm Wire-wound Rod
BGD 212/80—80µm Wire-wound Rod
BGD 212/100—100µm Wire-wound Rod
BGD 212/120—120µm Wire-wound Rod
BGD 212/150—150µm Wire-wound Rod
BGD 212/200—200µm Wire-wound Rod
BGD 212/Z-001—Holder for Wire-wound Rod
BGD 216—Wire-wound Rod set 4（includes any 4pcs different size wire bar coaters, a holder and a carrying case）
