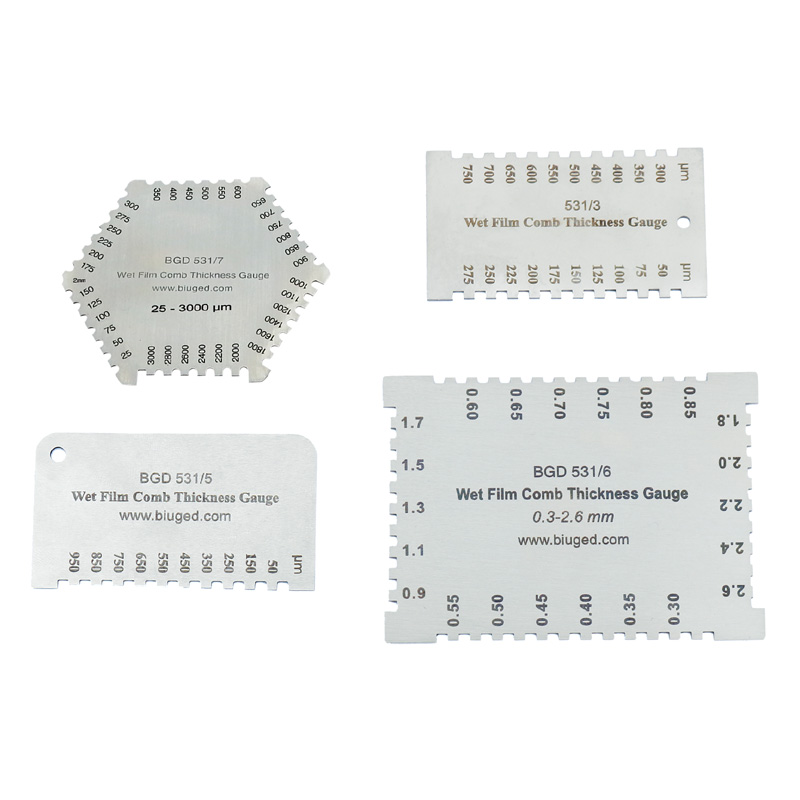

The Wet Film Thickness Gauges are made of a comb-shaped design with precision cut gaps to determine the coating thickness by placing vertically onto a wet coated substrate. it is a corrosion-resistant stainless steel with a hole at the top comer so that a string（not supply）can be attached for hooking
All Wet Film Thickness Gauges are machined by high precision CNC and with less than 3 micron devitation. They come standard with 10 gaps or more with inscriptions of the thickness at the side of each gap. It is recommended to replace a new gauge if there are chips, crack or uneven at the gap（s）of the gauge.
It comfoms ISO 2808 Method 1A and ASTM D4414.
■ Ordering Information：
BGD 531/1： 10µm-100µm （Stainless steel，@10µm）
BGD 531/2： 20µm-200µm （Stainless steel，@20µm）
BGD 531/3： 50µm-750µm （@25µm /@50µm）
BGD 531/6： 300µm-2600µm（Stainless steel，Quadrilateral @25µm /100µm）
BGD 531/7： 25µm-3,000µm （Stainless steel，Hexagon）
Note： Also can be marked with customer’s Logo if required
