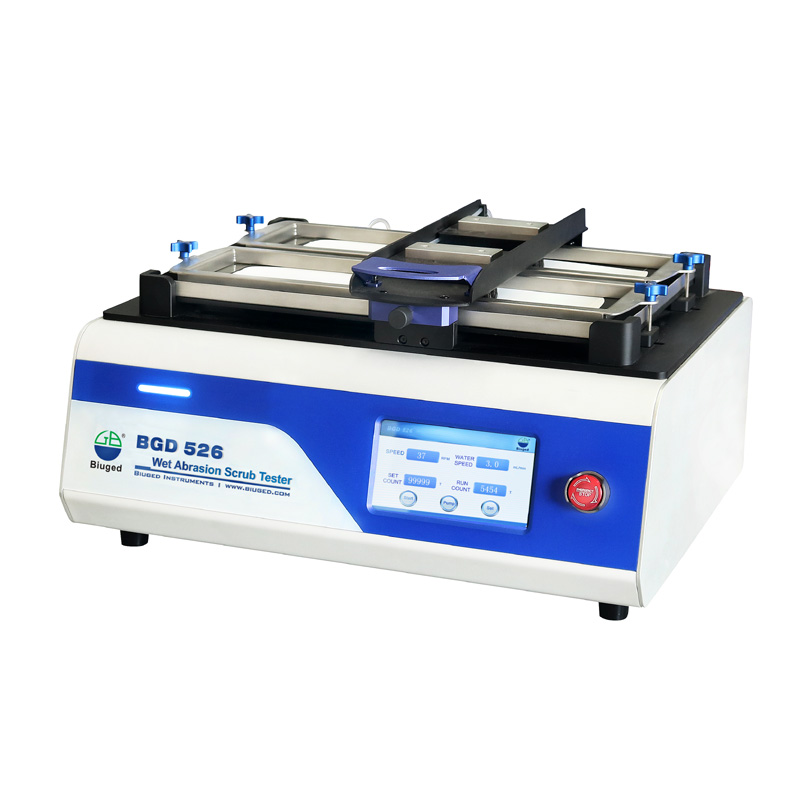

BGD 526 Wet Abrasion Scrub Tester is the newest machine which is developed by Biuged . It can examine washability and related properties that affect the stain resistance of coatings. Detergent performance testing can also be determined in a reproducible manner.
It accords with standards such as ASTM D2486, ASTM D 3450, ASTM D 4213, ASTMD 4828, DIN EN 11330, EN ISO 11998 etc.
Paint often becomes soiled especially near doorways, windows, and in work and play areas. Coated surfaces need to be tested for resistance to abrasion caused by a brush, sponge, or other means. The Wet Abrasion Scrub Tester can produce a repeatable, controlled condition to simulate everyday use or wear patterns.
Feature：
◆ Running speed can be set to meet requirements of different standards.
◆ With five-digit counter, start the machine and it will automatically be stopped when reaching set times.
◆ Compatible with a variety of abrasion pads to comply with different standards requirements, such as ISO, ASTM, DIN etc..
◆ Quickly and easily to load and unload testing samples and replacing abrasion head.
◆ Can work normally under different voltage and frequency
◆ With stable and uniform running speed because of Push-rod design
◆ Features two brush holders for side by side testing
◆ Long service life with hard and durable design
◆ The whole machine body is made of anodized aluminum, having stable working status, repeatable test results, no exception even in the fastest speed of the stroke.
◆ With peristaltic pump design, control scrub medium flow accurately.
■ Stroke Length: 300mm
■ Specification of brush: Nylon brush bristles in 5/4 pattern extending 19mm from block.
■ Weight of brush （including device holding brush）: 454±10 g（ASTM D 2486）；135±1g（ISO 11998）
■ Frequency of travel: 10～99 CPM（adjustable）
■ Range of count: 0～99,999 times
■ Size of test plate: 430mm×150mm×0.03mm
■ Power of motor: 25W
■ Power: 110V～220V；50/60 Hz
■ Overall size: 590mm×578mm×320mm（L×W×H）
■ Net Weight: 26 KG
■ Capacity of Water Container: 1L
■ Ordering Information:
BGD 526/1—Wet Abrasion Scrub Tester ( ASTM D 2486 )
BGD 526/2—Wet Abrasion Scrub Tester ( ISO 11998 )
BGD 526/3—Wet Abrasion Scrub Tester ( ASTM D 3450)
BGD 526/4—Wet Abrasion Scrub Tester ( ASTM D 4213 )
BGD 526/5—Wet Abrasion Scrub Tester (ASTM D 4828 )
BGD 526/6—Wet Abrasion Scrub Tester (DIN 53778)
BGD 527—Wet Abrasion Scrub Tester (ASTM D 2486& ISO 11998)
BGD 526/Z-006—Abrasion Heads for DIN 53778（Hog Bristle Brush+ Weights, total weigh is 250±10g）
BGD 526/Z-009—Abrasion Heads for ISO 11998（3M Scotch Brite handpads + Weights, total weigh is 135±1g）
BGD 526/Z-010—Abrasion Heads for ASMT D 2486（Nylon+ Weights, total weigh is 454±10g）
BGD 526/Z-011— Abrasion Heads for ASTM D 3450（Sponge+ Weights, total weigh is 1,500g）
BGD 526/Z-012— Abrasion Heads for ASTM D 4213（Sponge+3M Scotch Brite handpads + Weights, total weigh is 470±10g）
BGD 526/Z-013— Abrasion Heads for ASTM D 4828（Sponge+ Weights, total weigh is 1000±10g）
BGD 526/Z-018—Special nylon brush （ASTM D 2486；1 pair）
BGD 526/Z-021—Hog Bristle Brush（1 pair）
BGD 526/Z-022—Sponges (ASTM D 4213；12 pcs)
BGD 526/Z-023 —Abrasive pad（3M Scotch Brite® handpads）（ISO 11998；Size— 90×39mm; Pack of 50 pairs）
BGD 526/W-030—Sponges (ASTM D 3450 & ASTM D 4828；12 pcs)
BGD 526/J-115—Locating Frame for brush&abrasive pad（Used in conjunction with BGD 526/Z-006,BGD 526/Z-009、BGD 526/Z-010）
BGD 526/J-119—Locating Frame for sponges（Used in conjunction with BGD 526/Z-011、BGD 526/Z-012、BGD 526/Z-013）
BGD 526/J-123—Brass Shim （165mm×12.7mmm×0.25mm；pack of 10 pairs）
BGD 2208—Black plastic panel（432mm×165mm×0.25mm；pack of 100 pcs）
BGD 526 Wet Abrasion Scrub Tester (NEW) (Introduction)
BGD 526 Wet Abrasion Scrub Tester (NEW) (Operation)
