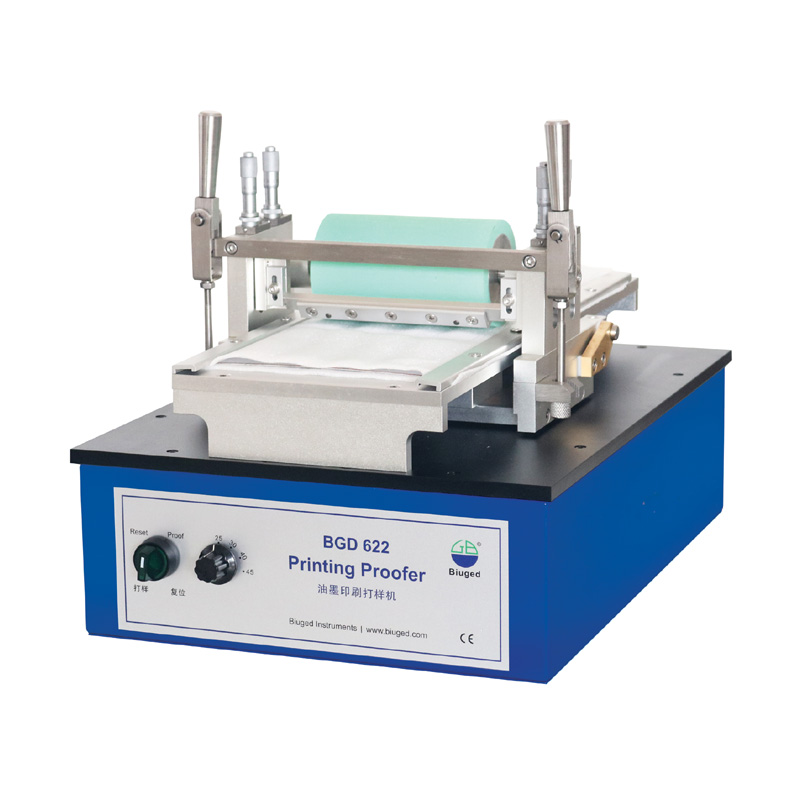

High quality proofs using gravure, gravure-offset or flexo inks are produced instantly using the BGD Printing Proofer. Featuring electronically engraved printing plates and variable printing speeds of up to 45m/min, this is an essential tool for all those involved in the manufacturing or use of liquid inks. Ideal for R &D and computer colour matching data, quality control and presentation samples. And these Printing Proofers are very easy to clean and all parts are solvent resistant.
◆ Almost any flexible substrate can be printed or laminated
◆ Excellent printability ensured by micrometer control
◆ Multiple ink samples may be printed simultaneously for comparison purposes
◆ High printing speeds enable use of inks nearing press viscosity
| Ordering Information → Parameter ↓ | BGD 622/1 | BGD 622/2 |
| Applicable for | Gravure Ink | Flexographic Ink |
| Motor Power | 120W | 120W |
| Impression roller | Φ76×130mm | Φ50×130mm |
| Roller Hardness | Shore A55 | Shore A50 |
| Printing Speed | Four sorts ：20-30-40-45m/min | Four sorts：20-30-40-45m/min |
| Printing Length | 150mm | 150mm |
| Power | 220V 50Hz | 220V 50Hz |
| Overall Size | 500mm×340mm×350mm | 500mm×340mm×350mm |
| Weight | 26KG | 27KG |
Printing Plate
Printing plates for use with the Printing Proofer are electronically engraved in exactly the same way as production cylinders. A choice of one or more of the standard plates available will normally be satisfactory.
| TYPE | Number of Lines （Lines/inch） | Density （%） | Remark |
| A1 | 150 | 100 | Solid Area Plate |
| A2* | 100 | 100 | |
| B1 | 150 | 100-80-60 | Single 3 Wedge Plate |
| B2* | 150 | 100-90-80 | |
| C1 | 150 | 100-90-80-70 90 | 1+4 Wedge plate |
| C2* | 300 | 100-90-80-70 90 | |
| C3* | 175 | 100-90-80-70 90 | |
| C4* | 175 | 80-60-40-20 100 | |
| D1 | 150 | 100-95-90-85-80-75-70-60 100-95-90-85-80-75-70-60 | Double 8 Wedge Plate |
| D2* | 150 | 40-35-30-25-20-15-10-5 80-75-70-65-60-55-50-45 |
Note: “*” are special plates and need custom-made
