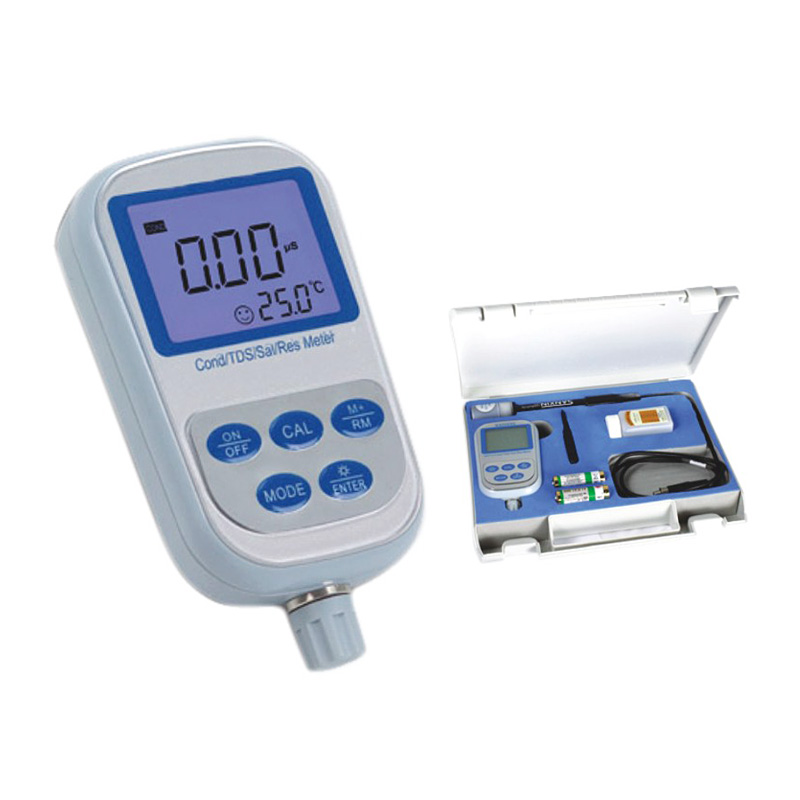

Portable Conductivity Meter

◆ Built-in microprocessor chips, intelligent functions such as automatic calibration, automatic temperature compensation, data storage,

function set-up, automatic power-off and low voltage display.

◆ Automatic identification of 8 conductivity standard calibration solutions, two options of standard calibration solutions: Europe and America

series and China series.

◆ Adopt advanced conductivity measurement technology, use conductivity electrode of constant K=1, only need one point calibration and

meet the measurement precision requirement of 0.5μS/cm ~ 200 mS/cm.

◆ Ability to switch among conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion

precision of the full scale.

◆ Conductivity measurement mode has the function of non-linear temperature compensation for high purity water.

◆ Plastic conductivity electrode with automatic temperature compensation, fast response and accurate result.

◆ Meter meets IP57 rating waterproof standard, equipped with calibration solution and portable case.

Main Technical Parameters

■ Measuring Range： 0 ~ 2 × 10⁵ μ S / cm

■ Resolution：0.01/0.1/1μS/cm； 0.01/0.1 mS/cm

■ Accuracy：Meter:±1.0% FS, Overall:±1.5% FS

■ Temp. compensation range：（0 ~ 50）℃（Automatic）

■ Data Storage：200 groups （Series number, measuring value measuring unit and temperature）

■ Power：Two AA batteries (1.5V x2)

■ Meter size and weight：120mm×65mm×31mm（L×W×H）；180g

■ Package size and weight：255mm×210mm×50mm（L×W×H）；790g

■ Standard kit includes：

①BGD 293 pH/mV meter （1 unit）

②Plastic conductivity electrode  (1 pc)

③1,413μS/cm conductivity standard solution (50mL)

④Spare AA batteries （2 pcs）

■ Ordering Information：BGD 293—Portable Conductivity Meter

BGD 1175/3—Plastic Conductivity Electrode

BGD 1176/3—Glass Conductivity Electrode
