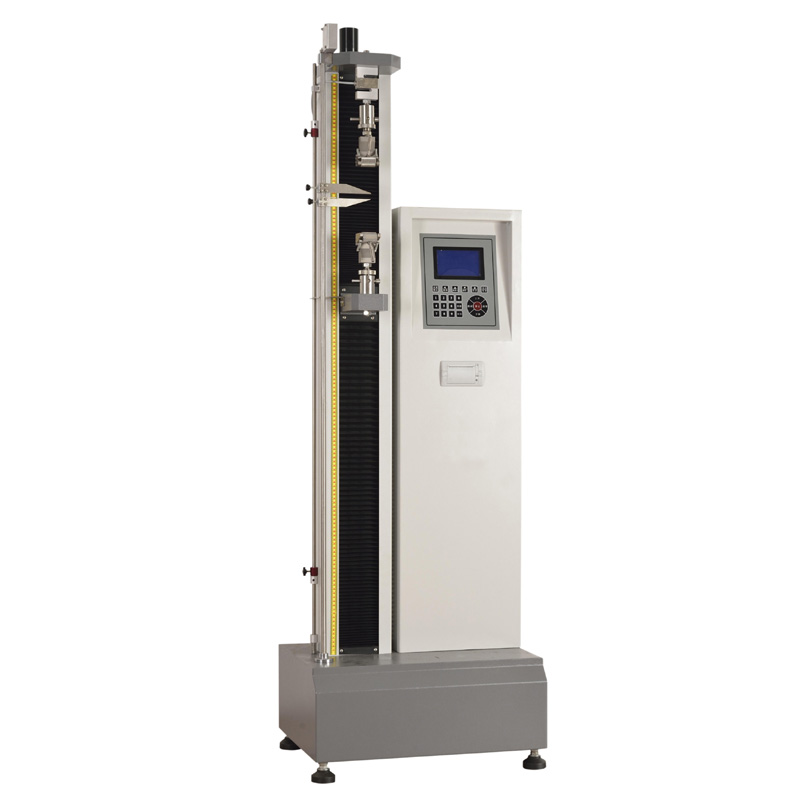

This is a Table Electronic Tensile Machine attached with the micro printer, it can not only test the tensile strength, compressive strength and extension length of all kinds of material, semi finished products and products, but also do the experience of stripping, tearing, bending, flexural, compression etc. Therefore, it is widely applied in the field of metal, plastic, rubber, textile, synthetic chemicals, wire and cable, leather etc
The Tensile Machine is also called Tensile Testing Machine or Universal Material Testing Machine. It is mainly used for tensile test (you also can call it stress-strain tester), they usually clip both ends of the material sample in two clamps which are a certain distance apart. Both of clamps separate and extrude the sample at a certain speed, testing the stress change which happens to the sample, and end of the test until the machine destroyed; recording the maximum and displacement during the test at the same time, so you can calculate the tensile strength, shear strength, peeling strength, yield strength, ring crush strength etc through the software. The tensile test is one of the most widely used methods in studying material mechanical strength, and it needs to adopt the constant speed.
In the present market , the tensile machine has mostly been adopted the design of electromechanical integration, which is consist of Main Part, Mechanic Part, Hydraulic System, Force Measuring System etc, the Force Measuring System is made up of Force Sensor, Transmitter, Microprocessor, Load-driving Mechanism and Computer.
■ Max. Capacity (Optional)：50N、100N、200N、500N、1000N、2000N、5000N
■ Precision Grade：Grade 1
■ Measuring Range of Test Force：1%～100% FS (Full Range)
■ The Indicated Error of Test Force：≤±1%
■ The Resolution of Test Force：±1/250000 of Max. Force (There is no grade in the whole process, and keep the constant resolution throughout the whole process.)
■ The Error of Indicated Displacement：≤±0.2% (Indicating Value)
■ The Resolution of Displacement：0.015mm
■ The Valid Width of Test：120mm
■ The Range of Tensile Speed：100～500 mm/min (Adjustable)
■ The Valid Length of Tensile (Excluding Clamp Holder)：1100mm
■ External Dimensions：570mm×410mm×1800mm（L×W×H）
■ Weight：150 KG
■ Power Supply：220V/50Hz
■ Power：400 W
■ Order Information:
BGD 575—Microcomputer Table Electronic Tensile Machine
BGD 1551—Tensile small range sensor（≤ 500KG）
BGD 1552—Tensile big range senso（≥ 500KG）
BGD 1553—Pneumatic Cutting Machine（Used to cut different type samples）
BGD 1554—Cutter for dumb-bell sample（For tensile strength）
BGD 1555—Cutter for right angle tear sample（For tear strength）
BGD 1700—-Plane clamp
BGD 1701—Eccentric wheel clamp
BGD 1704—-Film clamp
Optional Clamp：
BGD 1551—Tensile small range sensor（≤ 500KG）
BGD 1552—Tensile big range senso（≥ 500KG）
BGD 1553—Pneumatic Cutting Machine（Used to cut different type samples）
BGD 1554—Cutter for dumb-bell sample（For tensile strength）
BGD 1555—Cutter for right angle tear sample（For tear strength）
BGD 1700—Plane clamp
BGD 1701—Eccentric wheel clamp
BGD 1702-—Wedge clamp for metal
BGD 1703—-Wedge clamp for hard plastic
BGD 1704—-Film clamp
