Intelligent Volume Solids Content Tester

The volume solids content of coatings is of great significance in guiding their application. However, traditional testing methods (density method, disc/plate method) are difficult to operate and often yield highly variable results.

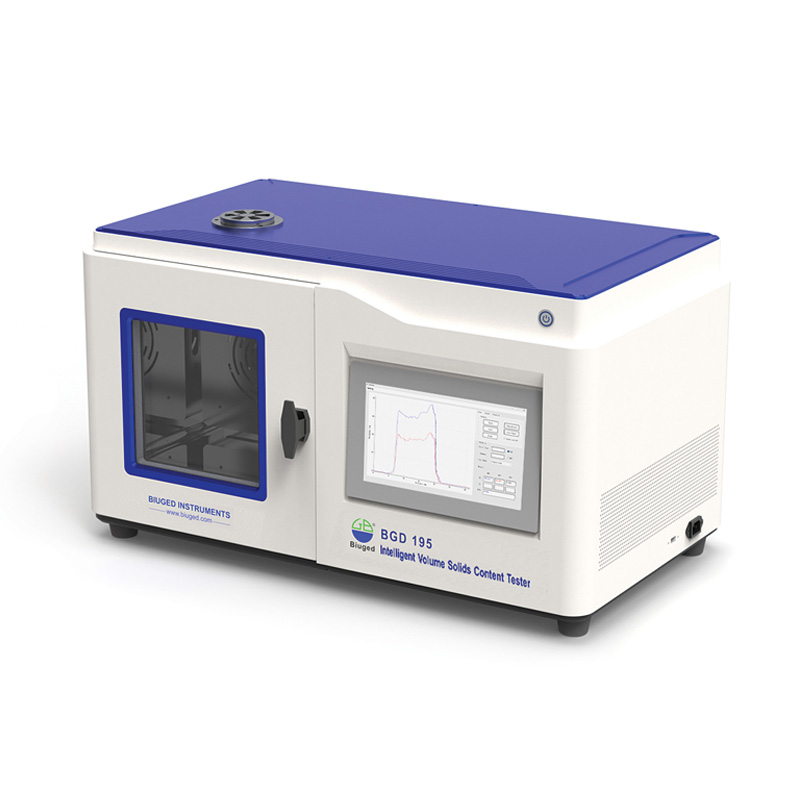

The instrument consists of two working zones: the left side is a baking chamber, and the right side is a high-precision laser scanning measurement area. The operator places the wet film sample into the working chamber, and the system automatically transfers it to the right-side laser scanning zone for wet film volume measurement. After this step, the sample is automatically moved to the left-side baking chamber for drying at a preset temperature. Once the drying time elapses, the sample is automatically returned to the right-side laser scanning zone for dry film volume measurement. Finally, after obtaining both wet and dry film volumes, the instrument automatically calculates the volume solids content of the sample.
◆ Built-in baking system, allowing simulation of any curing scenario or drying mechanism for coatings
◆ Fully automated measurement, easy to operate, high accuracy, and excellent repeatability
◆ Capable of measuring fully transparent samples without compromising precision or repeatability

Main Technical Parameters
■ Optimal scanning film thickness range: 30μm–1200μm (recommended film thickness: 100μm)
■ Volume measurement accuracy: ±1%
■ Volume measurement repeatability: ±0.1%
■ Measurement result repeatability: 3%
■ Sample drying temperature range: 50°C–150°C (recommended: 60°C–90°C)
■ Instrument dimensions (L×W×H): 760mm × 465mm × 450mm
■ Net weight: approx. 50kg
■ Ordering information:  BGD 195 — Intelligent Volume Solids Content Tester
