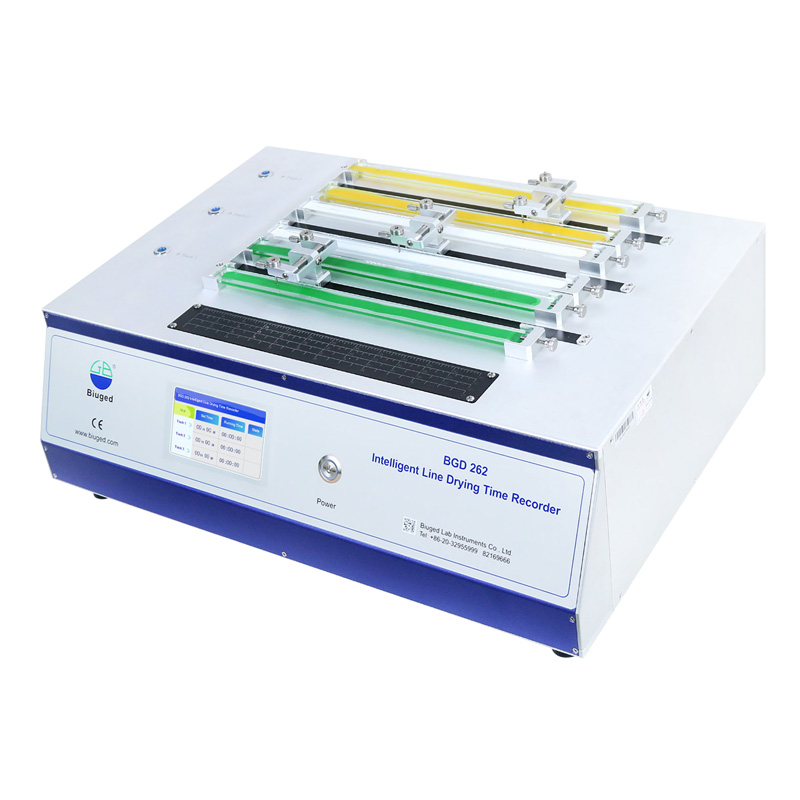

Intelligent Line Drying Time Recorder

When developing a process, it is important to know the exact time it takes for the coating to dry or cure. There are many stages to the coating drying time. Once a coating has been applied, the first stage is that the coating levels off under gravity. Once a coating begins to cure, a thin dry film appears on the surface.

But how to know when a coating is totally dry?

Using the Biuged Drying Time Recorder, the operator can easily identify each of the stages of the drying process：

A ball tip is placed into the coating and, using the mathematical formula： Distance=Speed ×Time ； the Recorder begins to move this ball at a predefined speed. As the coating dries, the trace left in the coating by the ball identifies each stage of the cure.

◆ Big size touch screen (5 inch) and shows three channels working parameters at the same time

◆ Very easy and convenient to set working parameters

◆ Broad and flexible time range：can be set varying from 4 minutes up to 48 hours. This makes the BGD  Drying Time Recorder suitable for fast drying waterborne coatings as well as very slow drying paints that may need days to dry.

◆ Uses photoelectric sensor to accumulate and show real-time position, and can achieve accurate position which precisely corresponds to working time.

    ◆ Traceback Function: By moving the stylus to the target position, the instrument can automatically calculate the corresponding test time at that point.

◆ With motor drive controlling system which has our own intellectual property to ensure high precision location.

◆ Each channel has LED indicator light to show this channel is working or not.

◆ Come with 6 pcs stainless steel weights (5 gram per weight) for recording through drying

◆ Come with calibration certificate

◆ Comply with standards：ASTM D 5895-03, ISO 9117-4

Main Technical Parameters

■ Working tracks：3 pairs individual tracks, each track includes two working channels

■ Setting range for working time：4minutes – 48 hours (Each track can be set individually)

■ Styli Diameter (with rounded tip) : 2mm±0.05mm (6 pcs)

■ Power：200W

■ Overall Size：600mm×430mm×240mm (L×W×H)

■ Net Weight：27KG

■ Ordering Information：

BGD 262—Intelligent Line Drying Time Recorder

BGD 203—Cube Applicator

BGD 261/Z-003—Glass Panel Holder

BGD 261/W-006—Glass Panel Set (330mm×24mm×3mm，Set of 60)

BGD 203—Cube Applicator (see Application)

BGD 1481—Glass Panel Holder

BGD 2602—Glass Panel Set (330mm×24mm×3mm，Set of 60)
