Insulation Resistance Meter is used to test electrician insulated materials, cable and wire, Anti-static engineering and other electric materials. It is made up of the most advanced high megohm resistance, weak current electronic components. With high precision, high resolution, strong capacity anti jamming etc characters.
Main Technical Parameters:
■ Rated voltage：10V；100V；500V
■ Measuring Scope： 0-2×1012Ω
■ Measurement error：
±（1% showing value+2 LSD） Rx≤109Ω
±（3% showing value+2 LSD）109Ω～1010Ω
±（5% showing value+2 LSD）1010Ω～1012Ω
±（10% showing value+2 LSD）1013Ω～1014Ω
±（20% showing value+10 LSD）>1014Ω
■ Testing set time： 1min～7min
■ Power supply： 8 pcs 1.2V(rechargeable batteries) or 8 pcs 1.5V battery
■ Operating environment： 0～40℃ 85%RH（25℃）
■ Weight：2kg
■ Size： 270mm×250mm×100mm

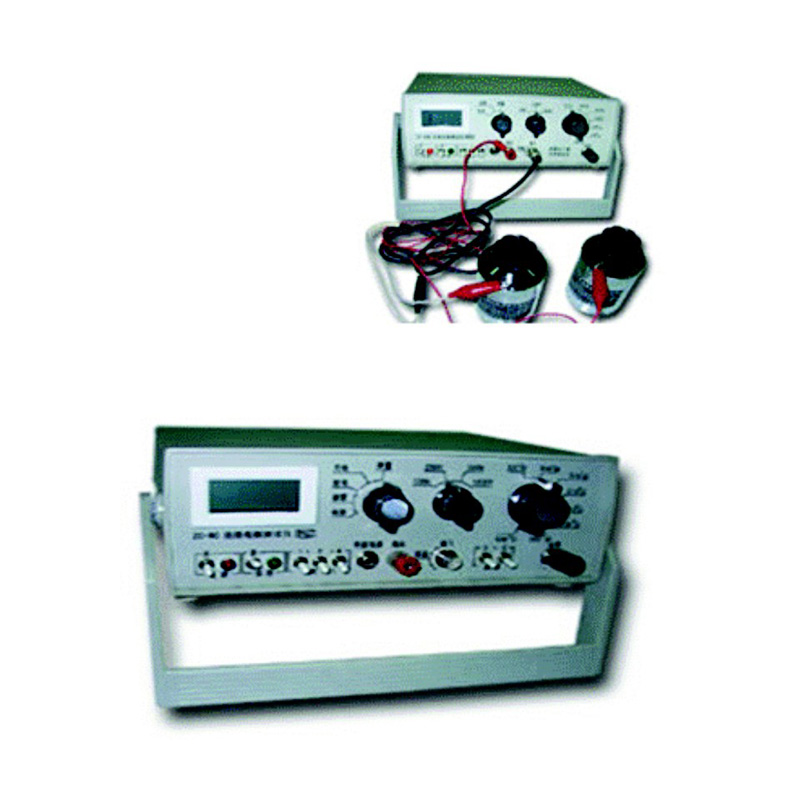

■ Ordering Information：BGD 968—Insulation Resistance Meter
