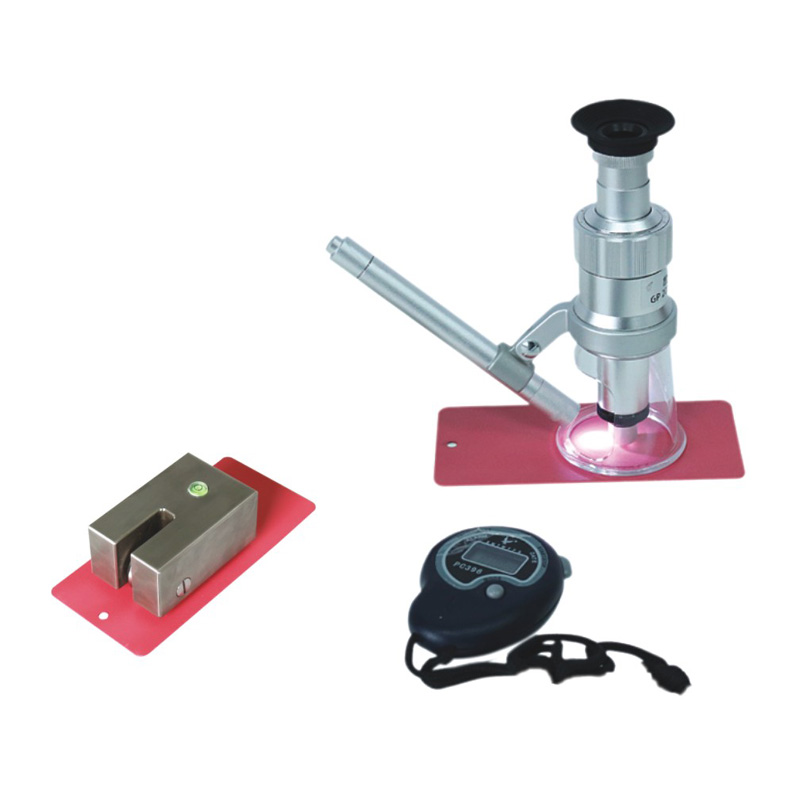

BGD 510 Buchholz Indentation Tester is a reliable test method for evaluation of indentation resistance of plastic deformable coatings. A beveled disc with a sharp edge is applied onto the test surface under a constant 500g. Test load provided by a steel block holder. The trace left after 30 s. Load is measured with a 20X magnification illuminated microscope. The length of the indentation is inversely proportional to the hardness.
◆ Conform with Standard ISO 2815
◆ Stainless steel block
◆ Circular tool is a double cone block
◆ Circular tool and support of hard metal
◆ Marking triangle for precise positioning.
◆ 20x magnification with graduated scale to measure indentation length.
Main Technical Parameters：
■ Indentation load：500±5g
■ Indentation Diameter：30±0.2mm
■ Indentation Width：5±0.1mm
■ Indentation Angle：60°±0.5°
■ Accuracy of indentation reading：0.1mm
■ Ordering Information：BGD 510—Buchholz Indentation Tester
BGD 510 Buchholz Indentation Tester (Introduction & Operation)
