Coatings and paints can protect, decorate substrate or conceal the defects of substrate, and these three functions are related with coatings hardness. And hardness is the important performance for paint mechanical strength, as well as the important indicator to judge paint quality. One of important indicators to evaluate coatings hardness is scratch tester.
ISO 1518 《Paints and varnishes — Determination of scratch resistance》specifies a test method for determining under defined conditions the resistance of a single coating or a multi-coat system of paint, varnish or related product to penetration by scratching with a scratch stylus loaded with a specified load. Penetration of the stylus is to the substrate, except in the case of a multi-coat system, in which case the stylus can penetrate either to the substrate or to an intermediate coat.
This test has been found to be useful in comparing the scratch resistance of different coatings. It is most useful in providing relative ratings for a series of coated panels exhibiting significant differences in scratch resistance.
Before 2011, there is only one standard which is used to evaluate paint scratch resistance, which against to evaluate scientifically to paints scratch resistance under different applications. After revise this standard on 2011, this test method is divided two parts: One is constant-loading, i.e the loading to panels is constant during the scratch test, and the test results is shown as max. weights which don’t damage coatings. The other is variable loading, i.e. the loading on which stylus loads test panel is increased continuously from 0 during the whole test, then measure the distance from finial point to the other point when the paint appear scratch. Testing result is shown as critical loads.
As a important member of Chinese Paint & Coating Standard Committee , Biuged is responsible for drafting the relative Chinese standards on the base of ISO 1518, and developed BGD 520 scratch testers which conforms the newest ISO 1518:2011.
Characters
◆ Big working table can be moved left and right—convenient for measuring different areas in the same panel
◆ Special fixing device for sample—can test different size substrate
◆ Sound-light Alarm system for puncturing through sample panel—more visual
◆ High hardness material stylus—more durable
Main Technical Parameters：

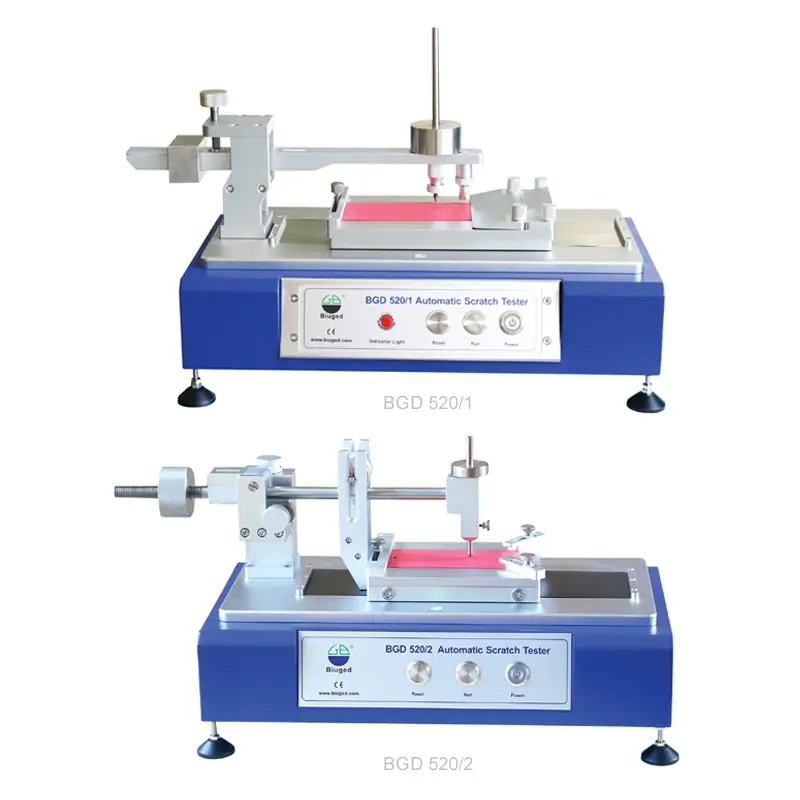

| Ordering information → Technical Parameter ↓ | BGD 520/1 Automatic Scratch Teter （Constant-loading） | BGD 520/2 Automatic Scratch Teter （Variable-loading） |
| Conform standards | ISO 1518-1; BS 3900：E2，BS EN 13523-12 | ISO 1518-2 |
| Stylus | Having a hemispherical hard-metal tip of radius 0.5mm | Coned sapphire or diamond, the tip radius is 0.03mm |
| Angle between stylus and sample | 90° | 90° |
| Weight | 0.5N×1，1N×1，2N×2，5N×1，10N×1 | 0g～50g or 0g～100g or 0g～200g |
| Motor | 15W 220V 50HZ | 25W 220V 50HZ |
| Sytlus Moving Speed | （35±5）mm/s | （10±2） mm/s |
| Working Distance | 120mm | 100mm |
| Max. Panel Size | 200mm×100mm | |
| Max. Panle Thickness | Less than 1 mm | Less than 12 mm |
| Overall Size（L×W×H） | 560mm×270mm×380mm | 580mm×270mm×300mm |
| Net Weight | 17 KG | 17.5 KG |
BGD 520/1-J-069—Scratch stylus A, having a hemispherical hard-metal tip of radius (0,50 ± 0,01) mm.
BGD 520/1-J-080—Scratch stylus B, having a hemispherical hard-metal tip of radius (0,25 ± 0,01) mm.
BGD 520/2-W-001—Stylus for BGD 520/2
BGD 520/1 Automatic Scratch Tester(Introduction)
BGD 520/1 Automatic Scratch Tester(Operation)
BGD 520-2 Automatic Scratch Tester(Introduction)
BGD 520-2 Automatic Scratch Tester(Operation)
