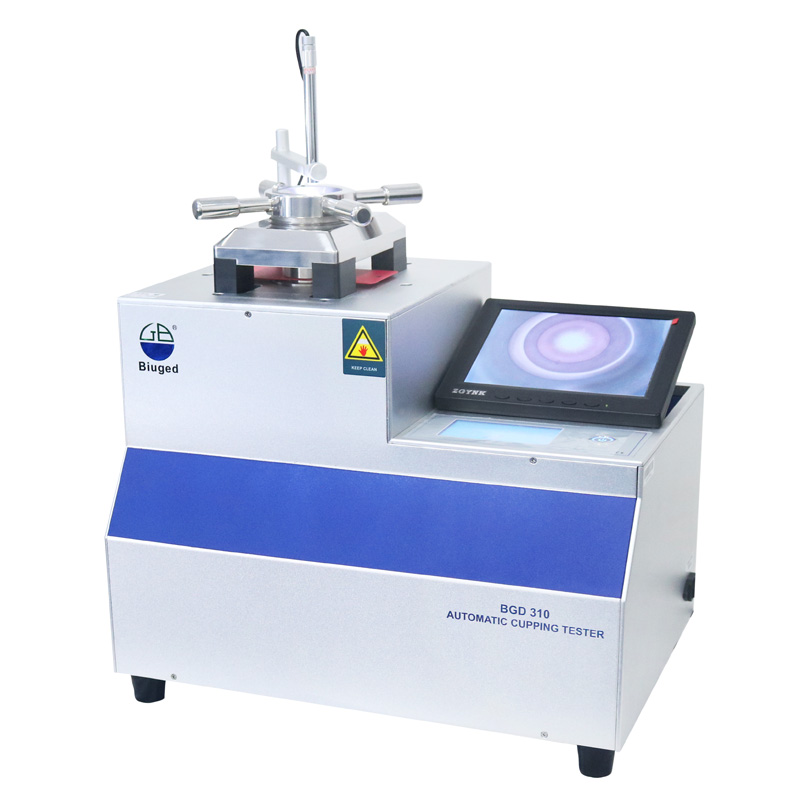

BGD 310 is a automatic cupping tester. On the base of BGD 309, this machine’s punch can rise automatically at the speed of 0.2mm/s which is required by standard. Eliminate the error coming from hand lifting.
Moreover, BGD 310 automatic cupping tester is equipped with a high definition screen , operator can observe clearly the damages（cracking）from tested specimen, thus judge test result easily and more precise.
It conforms ISO 1520,BS 3900 Part 4,DIN 53166,DIN 53233 etc
Features：
◆ Punch is lifted automatically （Constant speed：0.2mm/s）， get more reliable and more comparable test results.
◆ Automatic coordinate positioning system: machine can memorize the home position after being zeroed, and locate the punch position
automatically.
◆ High-power magnifier and high definition showing screen, judging test results is easier and more directly.And no need to focus during
the whole test.
◆ The lifting distance of punch can be set freely from 0～18mm
◆ High precision raster displacement sensor, locate accurately and precision can reach ±0.01mm
◆ The max. width of test panel can be 90mm
■ Diameter of Punch： ф20mm（0.8 inch）
■ Maximum Dent Depth： 18mm
■ Maximum Depress Power: 2,500N
■ Precision of Dent： 0.01mm
■ Max. Thickness of Test Panel：0.7mm（Stainless Steel），1.25mm（A3 Steel），2mm（Aluminum）
■ Net Weight： 52 KG
■ Ovenall Size： 466mm×322mm×500mm （L×W×H）
■ Ordering Information：BGD 310—Automatic Digital Cupping Tester
BGD 310 Automatic Cupping Tester (Introduction)
BGD 310 Automatic Cupping Tester(Operation)
